Compound fertilizer granules Flexible Screw Conveyor
Friday January-23 2026 17:56:57
Compound fertilizer granules Flexible Screw Conveyor gently conveys compound fertilizer granules without damaging the material through a flexible spiral built into a flexible hose. This is because the equipment consists of only a hose, flexible spiral, and motor, resulting in fewer components and less impact on the material during conveying. The equipment can convey 1-30 tons of compound fertilizer granules per hour, depending on factors such as the length and power of the equipment. It is adaptable to different lengths from 1-20 meters and various pipe diameters such as 75mm, 100mm, and 120mm.
Compound Fertilizer Granules Flexible Screw Conveyor Design

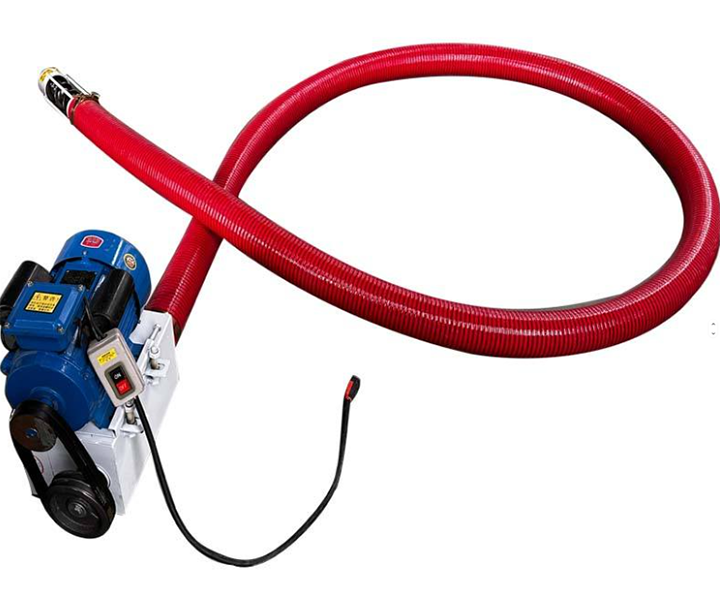

The Compound Fertilizer Granules Flexible Screw Conveyor adopts a modular structure consisting of a drive end, a flexible conveying chamber, and a discharge end. The drive end integrates a variable frequency speed-regulating motor and a reduction mechanism, allowing for adjustable speed and quantitative conveying of compound fertilizer granules. The flexible conveying chamber consists of a wear-resistant, anti-static flexible hose and thickened stainless steel continuous spiral blades with minimal gaps, allowing for multi-directional arrangement. This provides a sealed conveying system to prevent moisture absorption and leakage, reduce breakage rates, and break up clumps to prevent clogging. The discharge end features an adjustable discharge port and a splash-proof structure, adaptable to various docking equipment such as silos and packaging machines.
Advantages of the Compound Fertilizer Granules Flexible Screw Conveyor
The Compound Fertilizer Granules Flexible Screw Conveyor features sealed conveying, controllable conveying volume, small footprint, easy mobility, and guaranteed granule integrity.
Compound fertilizer granules require spherical shape to avoid affecting fertilization effectiveness. During conveying, the spiral blades of the Compound Fertilizer Granules Flexible Screw Conveyor make flexible contact with the material without high-speed impact, reducing the breakage rate of compound fertilizer granules.
The Compound Fertilizer Granules Flexible Screw Conveyor requires no complex foundation pouring or fixed supports. It is flexible, height-adjustable, and can convey materials horizontally, inclined, and vertically in multiple directions. It is suitable for use in fertilizer production workshops or warehouses, including silos and loading areas, and is ideal for compact layouts with elevation differences and corners.
The equipment can control the conveying volume of compound fertilizer granules by adjusting the speed of the drive motor, thus adapting to the quantitative packaging and batching needs of fertilizer production packaging machines and avoiding packaging errors and batching imbalances caused by overfeeding or underfeeding.
Compound Fertilizer Granules Flexible Screw Conveyor Price
The price of a Compound Fertilizer Granules Flexible Screw Conveyor ranges from approximately $300 to $4500. Factors such as the conveyor length, material requirements, and motor power will affect the price. For example, the conveyor screw usually needs to be made of stainless steel, which is more expensive than carbon steel. If standard interfaces or custom accessories are required for the inlet and outlet, the overall price will also vary. Below are prices for different models for reference.
Compound fertilizer granules Flexible Screw Conveyor parameters
| Model Classification | Conveying Length | Pipe Diameter | Core Configuration | Price Range (USD) |
| Small Portable Model | 3-5m | 50-75mm | Carbon steel screw + ordinary hose, basic fixed-speed motor | 280-450 |
| Standard Industrial Model | 5-8m | 75-100mm | 304 stainless steel screw + wear-resistant and anti-static hose, variable frequency speed regulation motor | 900-1600 |
| Custom High-End Model | 8-12m | 100-150mm | 316 stainless steel screw + reinforced wear-resistant hose, explosion-proof variable frequency motor + mobile universal wheel base | 1800-3000 |
| Large Customized Model | ＞12m | ＞150mm | Thickened stainless steel + special corrosion-resistant hose, dual drive + intelligent conveying control system | 3200-5000 |
Applications of the Compound Fertilizer Granules Flexible Screw Conveyor
The Compound Fertilizer Granules Flexible Screw Conveyor is applied in various stages of the fertilizer industry chain and agricultural planting. In compound fertilizer production workshops, the equipment can connect granulation, drying, and screening processes, achieving closed-loop conveying of compound fertilizer granules between various equipment. In finished product storage and loading, mobile models can flexibly connect to silos, packaging machines, and transport vehicles to complete quantitative feeding and loading operations, avoiding leakage and dust. In agricultural input distribution and field application scenarios, it can be used in conjunction with mobile fertilization equipment to transport compound fertilizer granules from the storage tank to the fertilization machine in fields, orchards, greenhouses, etc., adapting to the needs of outdoor decentralized operations.
As a flexible conveying device for short distances, the Compound Fertilizer Granules Flexible Screw Conveyor can be made of different materials such as wear-resistant PVC, PU hoses, and stainless steel spirals, depending on the characteristics of the granules. The equipment is available in various models, from basic fixed-speed models to explosion-proof variable frequency and intelligent control models, covering small portable, industrial standard, and large customized models, with a reasonable price range. It is used in various conveying processes such as loading, unloading, batching, and packaging of compound fertilizer granules, providing a flexible and convenient solution for automated conveying of fertilizer granules.
