Flexible Screw Conveyor Chicken Feed
Saturday February-07 2026 14:09:19

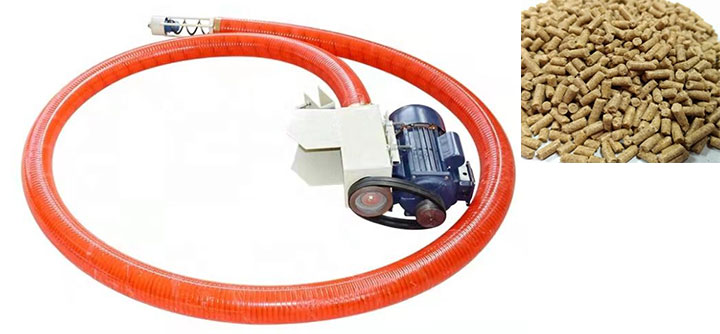

Flexible Screw Conveyor Chicken Feed is commonly used for transporting chicken feed. It can move feed between farms, warehouses, and processing areas in a closed system, minimizing spillage and dust, resulting in a cleaner environment. It's suitable for chicken farms with frequent feed transfers, offering greater convenience than manual handling and reducing the risk of feed jams or obstructions. Chicken feed typically comes in pelleted, powdered, and crushed forms. It's lightweight and prone to dust generation; pellets are easily crushed, powders clump when exposed to moisture, and crushed feed may be further ground during transport. This equipment operates smoothly with minimal feed compression. It can deliver feed horizontally 3 to 20 meters and vertically 1 to 6 meters, and can also transport it at an angle. The conveying capacity is adjustable, ranging from 500 to 8000 kg per hour, making it suitable for both small farms and large-scale operations. It's also easy to operate.
Flexible Screw Conveyor Chicken Feed Structure

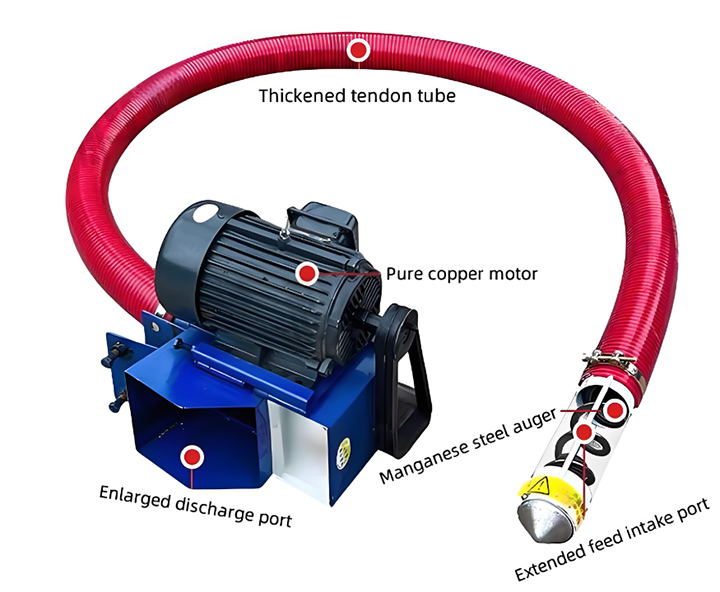

The Flexible Screw Conveyor Chicken Feed consists of a flexible conveying hose, spiral blades, a drive motor, an inlet, an outlet, and a fixed support. These components work together to ensure a continuous flow of chicken feed. The flexible conveying hose is typically made of wear-resistant food-grade PVC, with some models featuring an outer polyurethane layer for increased resistance to stretching and abrasion. The hose can bend freely, easily avoiding corners and equipment in the work area and reducing feed contamination. The internal spiral blades are commonly made of 304 stainless steel or high-manganese steel. Stainless steel has a smooth surface, is less prone to rust, and is suitable for powders and granules, while high-manganese steel is more wear-resistant and suitable for harder, crushed feeds. The drive motor is a copper-core three-phase asynchronous motor, with power options ranging from 0.75kW to 15kW. It features overload protection, smooth operation, and adjustable conveying speed via frequency conversion, offering greater flexibility.
Advantages of the Flexible Screw Conveyor Chicken Feed
The Flexible Screw Conveyor Chicken Feed is very convenient to use in chicken feed conveying, and it is well-suited to the form of chicken feed and the daily conditions of farms. The parts of the equipment that come into contact with the material are made of wear-resistant and rust-resistant materials, which are not prone to aging even after long-term use and are not afraid of frequent operation, making routine inspection and maintenance simple. It causes minimal damage to the feed during conveying. The smooth surface of the spiral blades, combined with the closed hose design, reduces collisions and friction of chicken feed inside the tube, keeping the pellet breakage rate below 1%, thus reducing feed waste. The entire system uses a closed conveying method, with sealed connections at the inlet and outlet, preventing chicken feed from flying around, keeping the site cleaner, and reducing cleaning workload. The continuous rotation of the spiral prevents powder from clumping or clogging. The blade spacing is adjusted according to the chicken feed size, ensuring smooth and jam-free operation. The equipment has a modular structure, requiring no complex construction. It is lightweight and occupies little space. Installation only requires fixing the bracket and connecting the motor, which can be completed by one person. It can also be moved to adapt to changes in the farming area.
Flexible Screw Conveyor Chicken Feed Models
The Flexible Screw Conveyor Chicken Feed is available in various models to meet the feed delivery needs of different farms. Customized solutions are also supported, allowing adjustments to the conveyor length, lifting height, and conveying capacity to suit the site layout. Motor power can also be configured as needed, making it suitable for farms with complex structures or personalized requirements.
The small FLX-500 model has a conveying capacity of 500kg to 1500kg per hour, a horizontal conveying distance of approximately 3 to 6 meters, and a vertical lifting height of 1 to 2 meters. It is equipped with a 0.75kW motor. Lightweight and easy to move, it is suitable for family farms or small-scale free-range chicken farms for short-distance feed delivery indoors.
The medium-sized FLX-3000 model can convey 1500kg to 3000kg per hour, with a horizontal distance of 6 to 12 meters and a vertical lifting height of 2 to 4 meters. Motor power ranges from 2.2kW to 5.5kW. It supports fixed or mobile installation and is suitable for small to medium-sized chicken farms for daily feed delivery between feed silos and chicken houses.
The large-scale FLX-8000 conveyor has a conveying capacity of 3000kg to 8000kg per hour, a horizontal distance of 12 to 20 meters, and a vertical lifting height of 4 to 6 meters. Equipped with a 7.5kW to 15kW motor, it features a fixed structure design for stable operation and is suitable for long-distance, high-volume feed conveying in large-scale chicken farms or feed processing plants.
Flexible Screw Conveyor Chicken Feed Application Scenarios
Flexible Screw Conveyor Chicken Feed has many applications in chicken farms, ranging from feed storage to feeding. For example, in warehouses, chicken feed can be transferred on the ground or lifted onto equipment and transport vehicles, saving manual handling. During feed processing, it can be connected to crushers, pellet mills, and other equipment to continuously transport processed powder or pellet feed, streamlining the process. During daily feeding, it can deliver chicken feed from the feed tower to feeding equipment in various chicken houses, whether indoors or outdoors, for both caged and free-range chickens. Furthermore, leftover feed can be collected and reprocessed, reducing waste. It is suitable for long-term use in various farming methods, including laying hens, broilers, and free-range chickens.
The Flexible Screw Conveyor Chicken Feed is adaptable to both pelleted and powdered feeds. Its structure, materials, and parameters are meticulously designed, solving problems such as dust, feed breakage, and clogging that are common with traditional conveying methods. It is also simple to install, operates stably, is easy to maintain, and has low energy consumption. Whether it's a small family farm or a large-scale breeding base, a suitable model can be found to meet the conveying needs of different production volumes and locations. The equipment can be used flexibly between warehouses, processing rooms, and chicken houses to deliver feed from silos to processing equipment or feeders. It can also recycle leftover feed, reduce waste, make the chicken farming process smoother, make the overall operation easier, and help chicken farms to have more standardized and organized production management.
