Flexible Screw Conveyor For Animal Feed
Friday February-27 2026 14:36:03
Flexible Screw Conveyor For Animal Feed is widely used in livestock and poultry farming and feed processing because it is easy to use, highly adaptable, minimizes damage to feed pellets, and can be integrated into the entire feed production and feeding process. This equipment has a conveying capacity of approximately 2 to 30 tons per hour, which can be adjusted by pipe diameter, rotation speed, and material characteristics. It is suitable for small farms for quantitative feeding and can also handle large-scale continuous conveying in feed mills. Its flexible installation methods—horizontal, inclined, and vertical—allow it to bypass walls and other obstacles, smoothly connecting silos, mixers, pellet mills, packaging lines, and feeding lines. It is suitable for feeds with good flowability, low stickiness, and uniform pellet size, such as complete pellets, premixes, corn, soybean meal, bran, and grains. It can even convey slightly damp or fibrous materials without easily clogging the pipes.

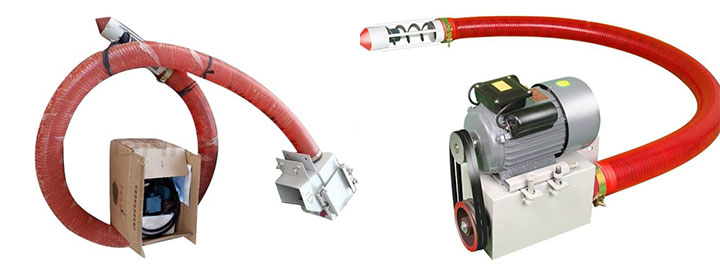

Components of the Flexible Screw Conveyor for Animal Feed
The Flexible Screw Conveyor for Animal Feed includes common components such as flexible helical blades, a sealed conveying hose, a drive motor, a speed reducer, a feed hopper, a discharge port, and a mounting bracket. It uses a shaftless helical structure, reducing feed clogging, and the sealed structure prevents feed spillage and contamination from external debris. The equipment is simple and easy to assemble and disassemble, requiring no complicated operations. The hose diameter ranges from Φ76 to Φ160 mm; smaller diameters are suitable for fine powders and low-flow conveying, while larger diameters are suitable for pelleted feeds and high-flow transfers. Single unit lengths range from 2 to 20 meters, and it can also be spliced and customized to adapt to different site layouts. Parts in contact with the material are made of stainless steel, and the outer hose is wear-resistant, anti-aging, and can be bent according to the feed conveying requirements.
What are the advantages of the Flexible Screw Conveyor for Animal Feed?
Using the Flexible Screw Conveyor for Animal Feed to convey animal feed offers many advantages to feed mills. In the feed preparation workshop, it's installed on the packaging scale. Workers pour bagged raw materials into a dust-collecting feeding station. After the animal feed is sieved, it enters the conveyor and is smoothly delivered to the mixer or buffer silo, eliminating the need for manual handling and making the work much easier. When it comes to packaging the finished product, it delivers the mixed feed from the finished product silo to the hopper of the automatic quantitative packaging scale, directly completing the weighing and filling. The entire conveying process takes place in a closed pipeline, preventing animal feed from spilling out and keeping the workshop environment much cleaner. If the feed type is changed, reversing the conveyor can completely discharge any remaining feed. The quick-connect fittings can also be disassembled to remove the screw, allowing for thorough cleaning of the pipeline and screw, preventing different feeds from mixing and affecting quality.
Flexible Screw Conveyor for Animal Feed Usage
| Usage Mode | Application Scenario | Conveying Length (m) | Maximum Lifting Height (m) | Conveying Capacity (t/h) | Pipe Diameter (mm) | Motor Power (kW) | Number of Discharge Points | Control Mode |
| Bin → Automatic Feeding Line | Chicken Farm / Pig Farm / Dairy Farm | 3–30 | ≤10 | 0.5–8 | 75–125 | 0.75–3 | 1 | Automatic / Timed Control |
| Internal Distribution in Production Line | Feed Processing Plant | 2–20 | ≤8 | 1–10 | 90–150 | 1.1–4 | 1 | PLC + Weighing System |
| Big Bag Unloading Conveying | Medium and Small-scale Farms | 2–15 | ≤6 | 0.5–5 | 75–100 | 0.75–2.2 | 1 | Manual / Semi-automatic |
| Horizontal + Vertical Combined Conveying | Multi-layer Chicken House / Vertical Silo | 5–40 | 8–15 | 1–6 | 90–125 | 1.5–5.5 | 1 | Frequency Conversion Control |
| Multi-point Discharge System | Large-scale Farm | 10–50 | ≤12 | 1–8 | 90–125 | 1.5–5.5 | 2–10 | PLC Automatic |

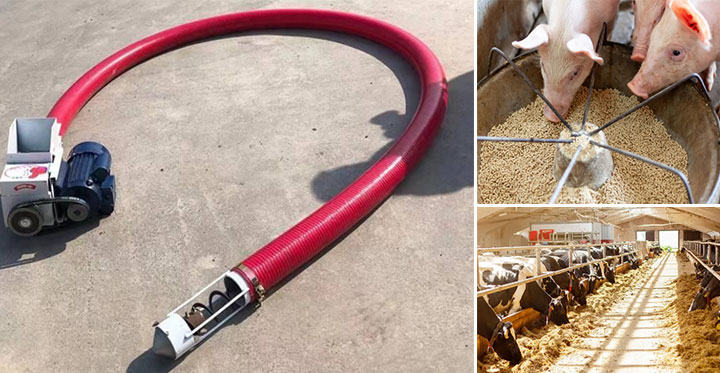

Flexible Screw Conveyor for Animal Feed Case Studies
The Flexible Screw Conveyor for Animal Feed is widely used in feed conveying in feed mills, pig farms, chicken farms, and cattle farms. A medium-sized feed processing plant used a 114mm diameter, 12-meter long machine, capable of transporting 8 to 12 tons of pelleted feed per hour. Connecting the mixer and packaging line together, the fully enclosed conveyor system reduced dust leakage by over 90%, improving the workshop environment. Another 10,000-head pig farm used multiple 6-8 meter long machines to deliver feed directly from the external feed tower to the pen troughs, achieving automated feeding without human supervision. This reduced feed waste by 5% and labor costs by 70%. Large feed mills, when receiving raw materials, use long-distance flexible spiral suction machines that can reach into trucks and warehouse corners to suck loose grain into vertical silos, transporting 100 tons per hour, significantly speeding up raw material unloading.
The Flexible Screw Conveyor for Animal Feed can handle various animal feeds, including pellets, powders, and grains. The conveying capacity and size can be customized. Its structure is simpler and easier to maintain than that of a shafted screw conveyor. The equipment can reduce feed loss, improve the production environment, reduce labor input, and enhance feeding safety. It is a supporting equipment for agricultural and livestock manufacturers to achieve automated and clean production and can be used in feed processing, storage, and automated feeding in farms.
