Flexible Screw Conveyor For Spices Powder

Thursday March-05 2026  14:54:57

Spices powder, due to its fine particles, high moisture absorption, and tendency to adhere, often leads to dust generation, blockages, and residue buildup during transport using traditional methods, impacting product quality. Flexible Screw Conveyor For Spices Powder adapts to the physical properties of spices powder, allowing for flexible steering and arrangement within a given space, reducing material loss and on-site cleaning frequency.

The equipment typically uses pipe diameters ranging from 50mm to 150mm. Parts in contact with the material are made of 304 or 316L stainless steel. Conveying capacity ranges from 1.5 tons to 12 tons per hour, and conveying length is customizable, ranging from 2 meters to 30 meters. The machine body is flexible and adjustable to fit existing workshop layouts. The Flexible Screw Conveyor for Spices Powder can transport single spices as well as compound seasonings and mixed spices, such as chili powder, pepper powder, cumin powder, and marinades.

What is the structural composition of the Flexible Screw Conveyor for Spices Powder?

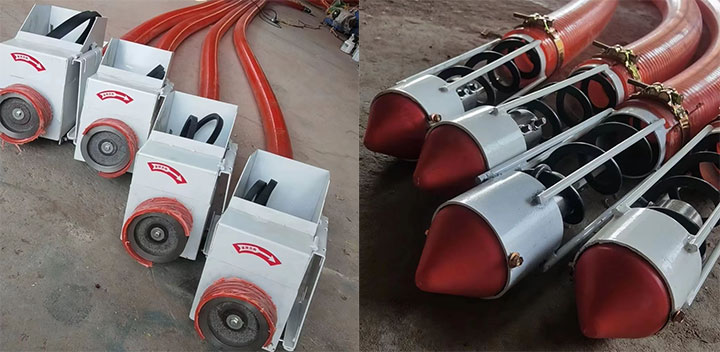

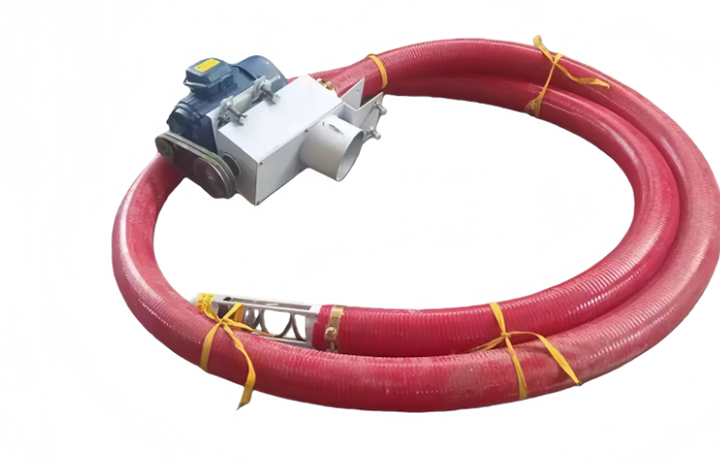

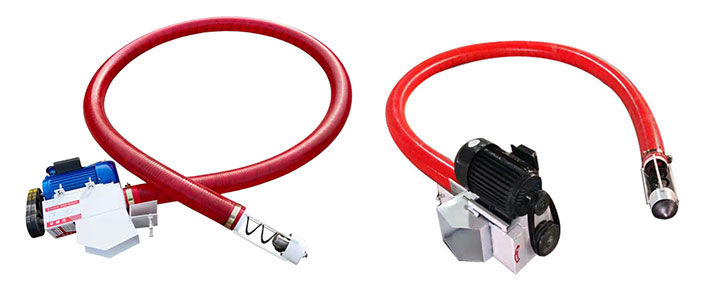

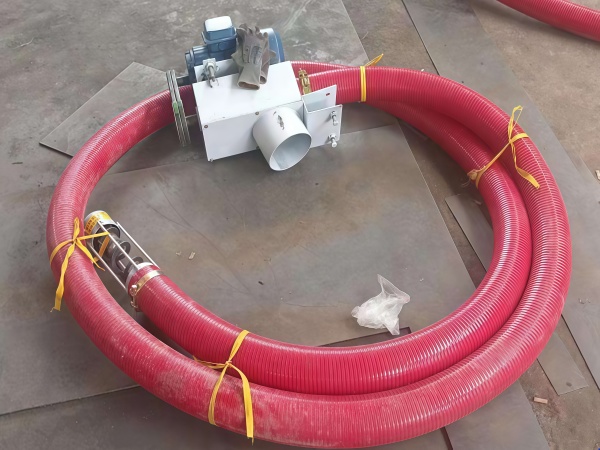

The Flexible Screw Conveyor for Spices Powder uses the thrust generated by the rotation of a screw to move the spices powder. A power unit drives a shaftless flexible screw to rotate within the conveying pipe, propelling the spices powder along the pipe and ultimately discharging it from the outlet. The entire machine consists of five parts: a feed hopper, a flexible conveying pipe, a shaftless screw, a power unit, and an outlet. The feed hopper receives and conveys the spices powder; the flexible conveying pipe wraps around the screw and defines the conveying path; the shaftless screw contacts and pushes the spices powder; the power unit provides rotational power; and the outlet connects to subsequent processing stations.

Why is the Flexible Screw Conveyor the choice for Spices Powder?

The Flexible Screw Conveyor for Spices Powder uses a fully enclosed pipe structure, allowing the spices powder to flow within the pipe and reducing contact with outside air. The pipe can be bent, allowing material transport around columns and equipment without complex adapters. Its smooth inner wall and shaftless design reduce material retention and simplify cleaning procedures when changing materials. During operation, the material moves evenly under thrust, maintaining stable particle shape and preventing breakage and stratification. The material is resistant to corrosion from acidic and oily components in spices and does not absorb material even with long-term use, thus maintaining a smooth inner wall. These properties make it suitable for the conveying requirements in spice production.

Applications in Spice Powder Processing

The Flexible Screw Conveyor for Spices Powder connects to the raw material unpacking station and the grinder, completing the pre-grinding feeding operation. The ground spice powder is conveyed to the mixer via this equipment to participate in the batching process. The mixed material can be transferred to a screening machine to remove lumps and impurities. The sieved powder is then conveyed to the hopper before the packaging machine, ensuring continuous feeding. This type of equipment can be used for material transfer between different hoppers within the workshop and for material conveying during small-batch trial production, adapting to the material transfer needs of each stage of spice powder processing and achieving seamless production flow.

Common Problems When Conveying Spices Powder

During the conveying of spices powder, when encountering spice dust contamination, the fully enclosed pipeline structure of the Flexible Screw Conveyor for Spices Powder can reduce material leakage and minimize dust diffusion within the workshop. When spice powder bridging occurs, an auxiliary loosening structure can be installed in the feed hopper to improve material agglomeration and blockage, ensuring smooth feeding. Uneven feeding can be addressed by using stable power output and a reasonable screw speed to maintain stable spice filling within the pipeline, reducing discharge fluctuations. Cross-contamination can be reduced by selecting conveying pipe fittings with smooth inner walls that are not prone to adhesion, combined with a simplified internal structure, reducing spice powder residue and facilitating quick cleaning when changing spice types, minimizing mixing between different spices.

The Flexible Screw Conveyor for Spices Powder is suitable for spice powder conveying scenarios. Its enclosed structure allows for flexible bending and arrangement, and its overall simple construction reduces dust, bridging, feeding fluctuations, and material cross-contamination during spice conveying. The equipment parameters can be adjusted according to different production needs and workshop layouts, covering the entire process from raw material feeding to finished product packaging, maintaining the original state of the materials, reducing the difficulty of cleaning and maintenance, and realizing continuous and stable material transfer during the processing of spice powder.
