How much does a hose screw conveyor cost?
Saturday December-13 2025 15:25:28
hose screw conveyor cost typically ranges from $700 to $9000. Machines handling common materials and short conveying distances are cheaper, while those using wear-resistant hoses and handling large conveying volumes are more expensive. The price of a hose screw conveyor is significantly influenced by factors such as material characteristics, pipe diameter, conveying capacity, and conveying length. Common pipe diameters include Φ50mm, Φ63mm, Φ75mm, Φ100mm, Φ125mm, and Φ150mm. Larger pipe diameters result in stronger conveying capacity, requiring more steel and a more powerful motor, thus increasing the price. Conveying capacities range from approximately 0.5 m³/h to 100 m³/h, with conveying lengths between 3 and 15 meters, custom lengths are available.
Hose Screw Conveyor Price
Below are prices for several common hose screw conveyor models for your reference. For a standard model with a conveying length of 3 meters, a pipe diameter of 63mm, using 304 stainless steel spirals and PU hoses, and equipped with a power of 0.75kW, the price is approximately $1,500 - $2,500. For a medium-sized machine with a conveying length of 8 meters, a pipe diameter of 90mm, all parts in contact with the material made of 304 stainless steel, and equipped with a speed-regulating motor and a simple feed hopper, the price is between $3,000 and $6,000. For solutions requiring a length exceeding 15 meters, using all 316 stainless steel and fully complying with industry certifications, the price may reach $10,000.
Hose Screw Conveyor Price Parameter Table
| Length Range (m) | Pipe Diameter (mm) | Conveying Capacity (t/h) | Motor Power (kW) | Price Range for Standard Carbon Steel Material (USD) |
| Short Distance: 3-5m | 150 - 250 | 10 - 30 | 1.5 - 3.7 | $1,500 - $4,000 |
| Medium Distance: 5-10m | 200 - 300 | 20 - 50 | 3.7 - 7.5 | $3,000 - $7,000 |
| Long Distance: 10-15m | 250 - 400 | 40 - 80 | 7.5 - 15 | $6,000 - $11,000 |
| Extra-Long Distance: 15-25m | 300 - 500 | 60 - 120 | 11 - 22 | $7,000 - $12,000 |
What Factors Affect the Price of a Hose Screw Conveyor?
Factors affecting the price of a hose screw conveyor include material characteristics, operating environment, and customization requirements. The following is a detailed introduction to the factors affecting the machine's price. You can combine these factors with your own needs to examine the price of a hose screw conveyor.
For ordinary, non-corrosive materials, carbon steel springs and ordinary PVC hoses can be selected, resulting in a correspondingly lower price. For materials subject to slight abrasion or mild corrosion, stainless steel springs and wear-resistant polyurethane hoses are required, increasing the price. Special materials requiring Teflon-coated springs or hoses will be even more expensive.
In common environments, a standard motor is sufficient. However, in dust explosion hazard areas, a fully explosion-proof motor, explosion-proof control box, and anti-static measures are necessary. Explosion-proof electrical components are significantly more expensive than standard motors.
The cost is lowest for a standard hose screw conveyor outlet. Adding hoppers, forced feeders, gate valves, or other special feeding devices will increase the price. Furthermore, there is a significant price difference between a simple start/stop switch and a PLC control system with variable frequency speed control, remote control, and material level linkage.

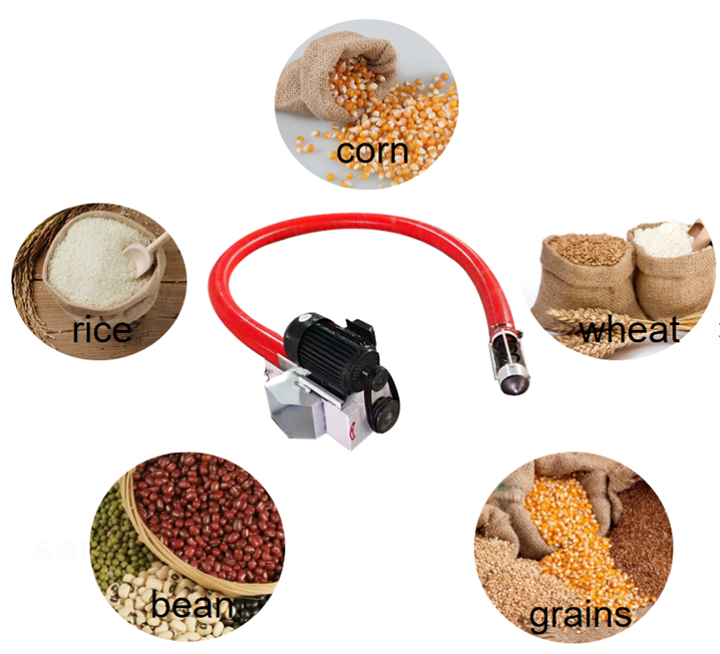

Hose Screw Conveyor Application Scenarios
In the baking industry, models used for horizontal flour conveying typically require a fully enclosed, easy-to-clean 304 stainless steel structure with a smooth, food-grade polymer lining. For example, a configuration with a conveying distance of 15 feet, a pipe diameter of 6 inches, and a conveying capacity of approximately 10 cubic meters per hour typically ranges in price from $6,500 to $9,000.
In the chemical industry, for conveying materials such as plastic granules, a model with a 30-foot horizontal conveying distance and a 15° inclination angle, treated for wear resistance and anti-static properties, using an 8-inch pipe diameter, equipped with a 7.5HP motor, and lined with wear-resistant steel plates, can achieve a conveying capacity of approximately 25 cubic meters per hour. The cost of such equipment is typically between $9,000 and $15,000.
How to get a hose screw conveyor quote from a supplier?
First, tell the supplier the name of the material, its bulk density, whether it is flammable, explosive, corrosive, or prone to moisture absorption and clumping; then specify the desired horizontal conveying distance or vertical lifting distance; state your expected conveying capacity, and describe the operating environment and process interfaces. This allows the supplier to accurately manufacture the hose screw conveyor model or customize it, ultimately providing an accurate quote.
