Limestone powder Flexible Screw Conveyor

Monday February-09 2026  17:08:18

Limestone powder Flexible Screw Conveyor is a conveying system used to transport limestone powder from upstream equipment such as storage silos and grinding mills to downstream processes such as batching and molding. During operation, it solves the problems of powder scattering and clogging. Limestone powder has good flowability but is also prone to generating dust and has a certain degree of abrasion and hygroscopicity, making it easy to bridge or clump during transport, thus requiring high-performance conveyors. This type of conveyor typically covers a straight distance of approximately 10 to 20 meters from the inlet to the outlet, with the specific length varying depending on the plant layout.

For vertical conveying, the Limestone Powder Flexible Screw Conveyor can lift limestone powder from 1 to 6 meters, suitable for multi-story production needs. The equipment can transport from 500 kg to 10 tons per hour, adapting to various situations from small-scale trials to large-scale production. The feed inlet is typically equipped with a universal ball joint or flange connection, allowing direct connection to silos, mixers, or packaging machines. Material can be poured manually or via negative pressure suction. The discharge outlet uses a standard flange or flexible connection for easy connection to downstream equipment, ensuring smooth material discharge. Whether conveying horizontally, inclined, or vertically, the flow direction can be well controlled, reducing limestone powder leakage and dust scattering.

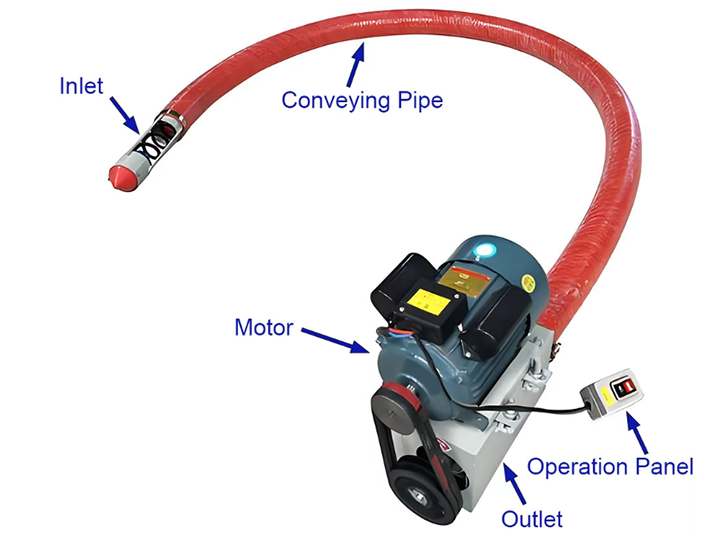

Limestone Powder Flexible Screw Conveyor Parts

The various components of the Limestone powder flexible screw conveyor determine its smooth operation. The screw blades are usually made of robust carbon steel or wear-resistant stainless steel with a polished surface, resulting in low friction during limestone powder flow and reducing the risk of damage. The screw itself acts like a flexible steel band, bending and weaving within the pipe to avoid obstacles while gently propelling the limestone powder without breaking it. The conveying pipe is made of strong, durable tubing, ensuring smooth powder flow and preventing breakage. The pipes are connected by clamps or flanges to prevent dust from escaping. The motor is installed at either the inlet or outlet end, with power ranging from 1.5 kW to 7.5 kW. It also features overload protection and speed regulation, allowing for speed adjustment based on limestone powder output and height during operation, ensuring smooth conveying.

Limestone Powder Flexible Screw Conveyor Performance

The Limestone powder Flexible Screw Conveyor demonstrates several advantages during use, particularly in terms of sealing, cleaning, explosion-proof design, and installation.

Its fully enclosed design effectively controls limestone powder within the tube, preventing spillage during conveying. This keeps the workshop clean and prevents external impurities from contaminating the powder, resulting in more consistent product quality.

Cleaning is also convenient. The flexible screw can be easily removed for cleaning without special tools, or the tube can be reversed to automatically remove residual powder. This is particularly useful for conveying food-grade or pharmaceutical-grade limestone powder.

Considering the potential fire hazard of limestone powder at certain concentrations in the air, this conveyor can be equipped with anti-static devices and explosion-proof motors. All metal parts are grounded, and explosion-proof sensors or nitrogen protection interfaces can be added as needed, making it suitable for high-risk environments.

Installation is also flexible. The compact, flexible spiral structure allows for bending, unlike traditional rigid conveyors that require straight tracks. It can be fixed to walls, ceilings, or placed directly on the ground, adapting to various complex factory layouts and reducing space occupation and modification costs, making equipment placement and adjustment easier.

Limestone Powder Flexible Screw Conveyor Model List

Limestone Powder Flexible Screw Conveyor for Sale

The price of the Limestone Powder Flexible Screw Conveyor varies depending on the configuration and specifications. The basic model starts at approximately $1300 USD, suitable for small production lines with conveying distances within 5 meters and conveying capacities not exceeding 10 cubic meters per hour, equipped with standard conveying hoses and a standard motor. Mid-range customized models range from $2,000 to $3,000. They allow for adjustments to conveying distance and vertical height, and can be equipped with wear-resistant pipes and motors with variable frequency speed control. Some models include basic explosion-proof devices, suitable for medium-sized production lines. High-end models are priced around $4,000 to $5,000. These models feature all-stainless steel screws, explosion-proof electrical components, and a material control system, making them suitable for long-distance, high-volume production lines.

The Limestone Powder Flexible Screw Conveyor, with its flexible screw design and wear-resistant materials, has become a commonly used device for limestone powder conveying. It solves the problems of limestone powder easily flying, abrasion, or residue during conveying, allowing the material to flow smoothly at different heights and distances. The equipment offers diverse configurations that can be adjusted according to working conditions, while performing well in terms of closed conveying, easy cleaning, and explosion-proof safety, making the production process safer. Installation is also relatively flexible, requiring no major changes to the factory layout, and the reasonable price range makes it suitable for production lines of different sizes. For industries such as building materials, chemicals, and metallurgy that use limestone powder, this equipment makes material conveying more stable, reduces pipe blockage and dust problems, and helps companies manage materials more meticulously, ensuring continuous and stable production. Introducing this equipment makes operation easier, material handling smoother, and helps improve production efficiency and reduce operating costs.
