Quartz sand powder Flexible Screw Conveyor

Wednesday January-21 2026  16:43:30

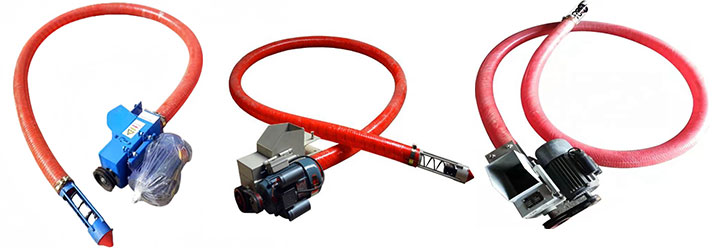

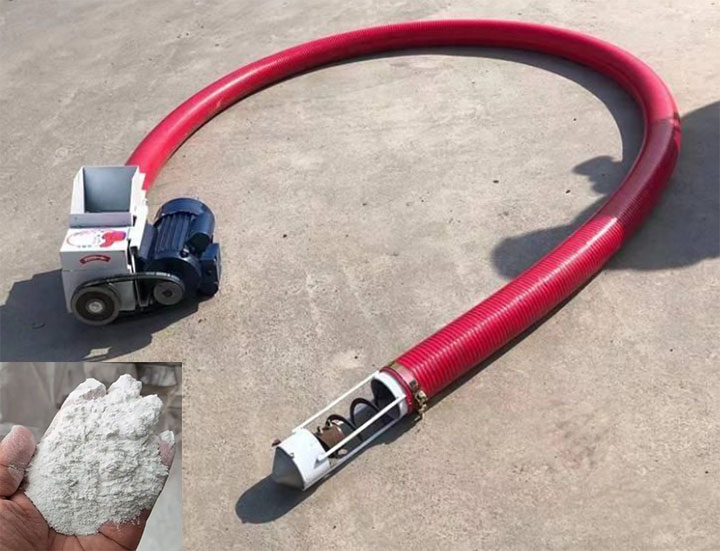

Quartz sand powder Flexible Screw Conveyor is a user-friendly conveying device that can be handheld or placed on the ground to transport quartz sand. The flexible hose can bend to a certain extent, allowing the device to convey materials at different angles. It can transport materials on flat ground or to higher ground such as trucks. The conveying capacity ranges from 1 to 30 tons per hour, depending on factors such as hose length, diameter, and motor power. Hose diameters are available in 50mm, 76mm, and 100mm, and both diameter and length can be customized.

Quartz sand powder flexible screw conveyor parts

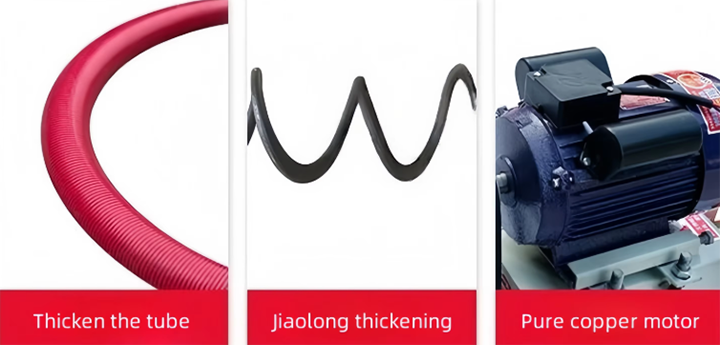

The Quartz sand powder Flexible Screw Conveyor's inlet is used to evenly introduce quartz sand powder into the conveying pipe. The pipe section consists of a conveying tube and a flexible screw. The screw, made of high-strength alloy steel or wear-resistant material, rotates within the pipe, propelling the quartz sand powder forward and adapting to curved conveying paths. The drive unit is a motor and reducer unit connected to the screw via a coupling, providing stable torque. The pipe end has an outlet for connecting to silos or other equipment. For handheld models, the equipment also includes a stand for easy support during transport.

Benefits of the Quartz Sand Powder Flexible Screw Conveyor

Quartz sand powder typically has a very small particle size, making it prone to agglomeration and clumping. The Quartz sand powder Flexible Screw Conveyor, while conveying quartz sand powder, also has a slight abrasive function, breaking up any agglomerated quartz sand powder and making it more uniform. Quartz powder has high hardness and may cause wear on metal conveyor equipment during transport. The flexible screw conveyor's internal screw and external hose are made of wear-resistant materials, reducing continuous wear. Quartz sand powder is prone to scattering; the entire pipeline of the flexible screw conveyor is sealed, preventing material spillage and avoiding the mixing of other materials with the quartz sand powder.

Quartz Sand Powder Flexible Screw Conveyor Specifications

Quartz Sand Powder Flexible Screw Conveyor Price

The price of the Quartz sand powder Flexible Screw Conveyor depends on factors such as the diameter and length of the hose. Equipment with a 100mm diameter and 4m length conveying pipe costs around $3000, while equipment with a 100mm diameter and 8m length costs around $4200. Equipment with a 120mm diameter, 3kW power, and a 500kg load capacity costs around $5100. Increasing the hose diameter while keeping the hose length constant will increase the price, and vice versa.

Applications of Quartz Sand Powder Flexible Screw Conveyor

In cement and concrete plants, Quartz sand powder flexible screw conveyors transport quartz sand powder from storage silos to mixers or agitators. In glass production lines, flexible screw conveyors transport fine quartz powder to glass furnaces or batching systems. In the coatings industry, flexible screw conveyors transport quartz sand powder as filler into mixers or extruders. In solar photovoltaic material production, flexible screw conveyors transport high-purity quartz powder to the photovoltaic silicon wafer production process.

The Quartz Sand Powder Flexible Screw Conveyor can be used in various industries, including cement plants, flooring material production, tile production, refractory materials, rubber, and electronics. This equipment offers excellent flexibility; it can be used for hand-held conveying, combined with trucks or other equipment, or even with a hose fixed in place. Its lightweight design makes it easy to move. Users can choose the appropriate conveying method and equipment size based on the specific quartz sand powder conveying requirements.
