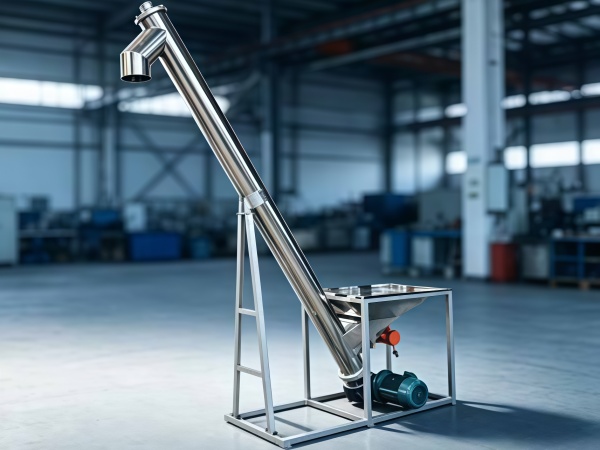

Custom Stainless Steel Auger Feeders & Screw Conveyor Systems Manufacturer

In the industrial bulk material handling process, standardized equipment often struggles to cope with materials that are corrosive, cohesive, or require specific airtight containment. Designing and manufacturing non-standard conveying solutions tailored to actual working conditions is the foundation for improving factory operational continuity. Customizing stainless steel conveying equipment is not merely about changing the casing length. It involves multi-dimensional data matching from materials science, fluid mechanics, and mechanical structures. By calculating the bulk density, viscosity, wear index, and flow behavior of the material at specific temperatures, we establish the pitch, shaft diameter, flight thickness, and motor power, thereby manufacturing customized mechanical systems capable of stable bulk material transfer.

Specific Industrial Indicators Included in Customization

The customization process translates working condition parameters into specific manufacturing dimensions, including the following technical details:

• Screw Flight Specification Customization: Outer diameters of the flights range from 50mm to 600mm, with thickness options available in multiple grades such as 3mm, 5mm, and 8mm. Depending on the flowability of the conveyed material, we provide standard pitch, variable pitch (for preventing clogging in the volumetric feeding section), or shaftless screw structures (for sticky materials).
• Metal Material & Surface Treatment: Components under pressure and in contact with the material can be selected from SS304 or SS316L stainless steel. Surface treatments provide brushing or mirror polishing with a roughness of Ra ≤ 0.8 μm, as well as sandblasting to reduce powder residue on the pipe wall.
• Drive & Sealing System Customization: Motor output speed can be adjusted via variable frequency drives between 10 RPM and 150 RPM. Shaft end seals provide pneumatic seals, packing gland seals, or mechanical seals to prevent fine dust leakage, withstanding operating pressures up to 0.1 MPa.
• Inlet/Outlet & Installation Incline: Connection flange dimensions for inlets and outlets are customized with bolt holes according to standards such as ANSI or DIN. Support frame heights and angles can be designed for inclined installations ranging from 0° to 45° depending on factory height constraints.

Stainless Steel Screw Conveyor Structural Diagram

Industrial Applications and Suitable Materials

By altering the equipment structure, stainless steel auger feeders can adapt to various bulk solids. Below are typical industrial applications and their corresponding materials:

Industry	Material Handled
Food Manufacturing & Grain Processing	Wheat flour, white sugar, coffee beans, starch, and various powders meeting production quality requirements (utilizing screw auger for food structure to prevent deposition)
Water Treatment & Sludge Disposal	Dewatered sludge with moisture content between 60% and 80%, bar screen filtration residues, municipal waste
Chemical Production	Urea granules, calcium carbonate powder, acidic catalysts, sodium hydroxide crystals
Pulp & Paper Industry	Wet wood chips, paper pulp, waste paper fibers, plant raw material chips

Technical Specification Table

The following table shows the common technical parameter ranges for standard and customized models. Actual manufacturing data will be adjusted according to the calculation sheet of the specific purchase contract:

Model	Screw Diameter (mm)	Capacity (m³/h)	Screw Speed (RPM)	Motor Power (kW)	Incline Range (Degree)
SS-AF150	150	1.5 - 5.0	20 - 90	1.1 - 2.2	0 - 30
SS-AF200	200	4.0 - 12.0	20 - 80	2.2 - 4.0	0 - 30
SS-AF300	300	10.0 - 28.0	15 - 60	4.0 - 7.5	0 - 45
SS-AF400	400	25.0 - 60.0	15 - 50	5.5 - 11.0	0 - 45

Manufacturing & After-Sales Services

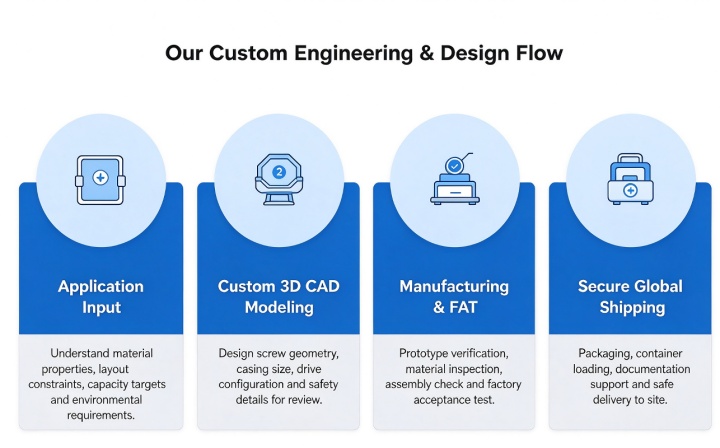

Once the custom project is initiated, our technical department provides a 3D CAD layout assembly drawing within 48 hours for the buyer's engineers to verify site interface dimensions. During production, we provide steel material test reports (PMI test reports) and welding procedure qualification records.

Before leaving the factory, the equipment undergoes no-load trial runs in the workshop for no less than 2 hours to detect bearing temperature rise (ensured to be no higher than 35°C) and operational noise (controlled below 75 dB). We supply these test videos to the buyer. Shipment includes factory certificates of conformity and operation/maintenance manuals. Technical support responds with an action plan within 2 hours of receiving failure feedback. Wear parts (such as hanger bearings, gland packings, and screw flights) are kept as standard stock and can be delivered to the site via express courier within 2 to 3 days.

Factory photos of custom stainless steel screw conveyors

Classification	Stainless steel screw conveyor with hopper	Inclined stainless steel screw conveyor	Mobile stainless steel screw conveyor
Classification	Stainless steel screw conveyor without hopper	Horizontal stainless steel screw conveyor	Vertical stainless steel screw conveyor

Frequently Asked Questions

Q1: How do I choose between SS304 and SS316L for a food processing screw conveyor?
A: Material selection is based on the chemical properties of the handled material. If the conveyed substance contains acidic or alkaline components, or contains more than 1% chloride ions (such as sauces or brines containing salt), SS316L containing molybdenum should be chosen, as its resistance to chloride pitting is significantly better than SS304. If conveying only neutral, non-corrosive materials like flour, rice, or dry fruits, selecting SS304 is sufficient to meet strength and rust resistance requirements, reducing raw material costs by approximately 25%.

Q2: What is the lead time for a custom made screw auger?
A: The manufacturing cycle for a single custom feeder of standard specifications (conveying distance less than 6 meters, material SS304) is typically 15 to 20 working days after both parties sign off on the technical drawings. For equipment with complex structures (such as double jackets, heating insulation structures, special valve interfaces, or ultra-long shaftless screw units), the production cycle is between 25 and 35 working days, depending on the procurement lead time of castings and specialty motors.

Q3: Do you provide replacement screw auger parts and aftermarket services?
A: We provide comprehensive spare parts supply services. Customers only need to provide the serial number of the equipment to retrieve the original design drawings. This allows us to precisely machine matching replacement screw shafts, flights, wear liners (such as UHMWPE liners), transmission chains, and seals. Services cover guided installation and online video technical debugging.

Q4: What budget is required to purchase a custom stainless steel screw feeder?
A: The price of custom equipment is determined by raw material consumption, processing labor hours, and the configured drive brand. For a SS304 standard custom feeder with a conveying distance of 3 meters and a pipe diameter of 150 mm using standard gear motors, the factory quotation typically ranges between $2,800 and $4,200. If specified foreign-brand explosion-proof motors, variable frequency control cabinets, or mirror polishing down to Ra 0.4 are required, the cost will increase accordingly and is calculated item by item based on material properties and technical requirements.

Conclusion

Stainless steel screw feeders and conveying systems are bulk material handling equipment with highly pronounced non-standard design characteristics. Rational selection is built upon accurate measurement of physical properties (particle size, moisture content, cohesiveness, angle of repose) and rational matching of technical parameters. By determining the material grade, plate thickness, rotational speed, and appropriate sealing structures, operational issues such as binding, material accumulation, and powder leakage can be eliminated, thereby securing stable output for the entire production line.
