Adjustable Inclined Belt Conveyor
Tuesday May-13 2025 17:57:22

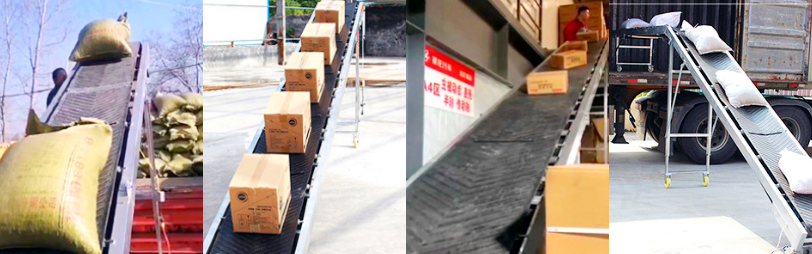

What is an adjustable inclined belt conveyor?
An adjustable inclined belt conveyor is a device that can adjust the inclined angle of the conveyor belt to meet the needs of different material conveying. Its core feature is the angle adjustability. Unlike traditional fixed inclined belt conveyors, its inclined can be adjusted as needed, suitable for different working environments and material conveying needs.
Types of adjustable inclined belt conveyors
①30° inclined belt conveyor
Applicable materials: suitable for light-load materials, suitable for medium and short-distance transportation
Features: The inclined adjustment range is generally 0°~30°, suitable for large-scale continuous operations
Application: Commonly used in mining, ports, grain processing and other industries, can transport coal, ore, grain and other materials

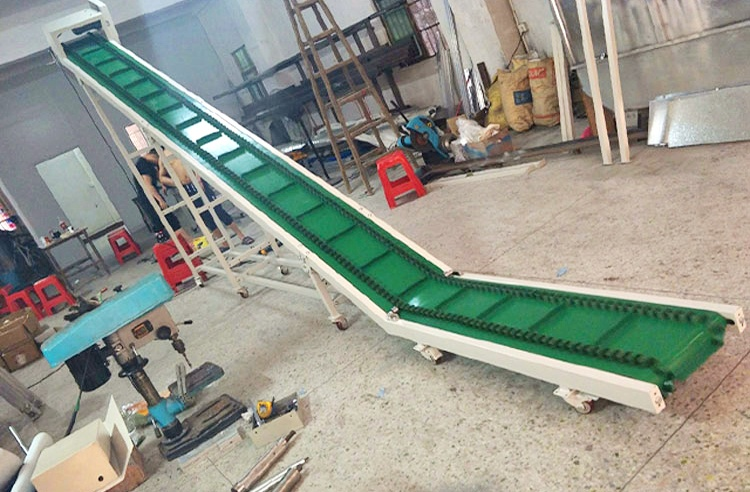

②45° inclined belt conveyor
Applicable materials: Commonly used for medium-load material transportation
Features: The inclined adjustment is generally 20°~45°, and it is often equipped with skirt sidewall belts (or corrugated sidewall belts) to prevent material rollback;
Application: Widely used in mining, construction, building materials yards, gravel yards, loading operations and other industries
③70° inclined belt conveyor
Applicable materials: used for materials with larger loads, suitable for use in places with limited space
Features: The inclined adjustment range is usually 45°~70°, and it is often equipped with skirt-edge belts (or corrugated belts) to prevent material rolling back;
Applications: lifting of granular materials, ore transfer, temporary transportation at construction sites, etc.

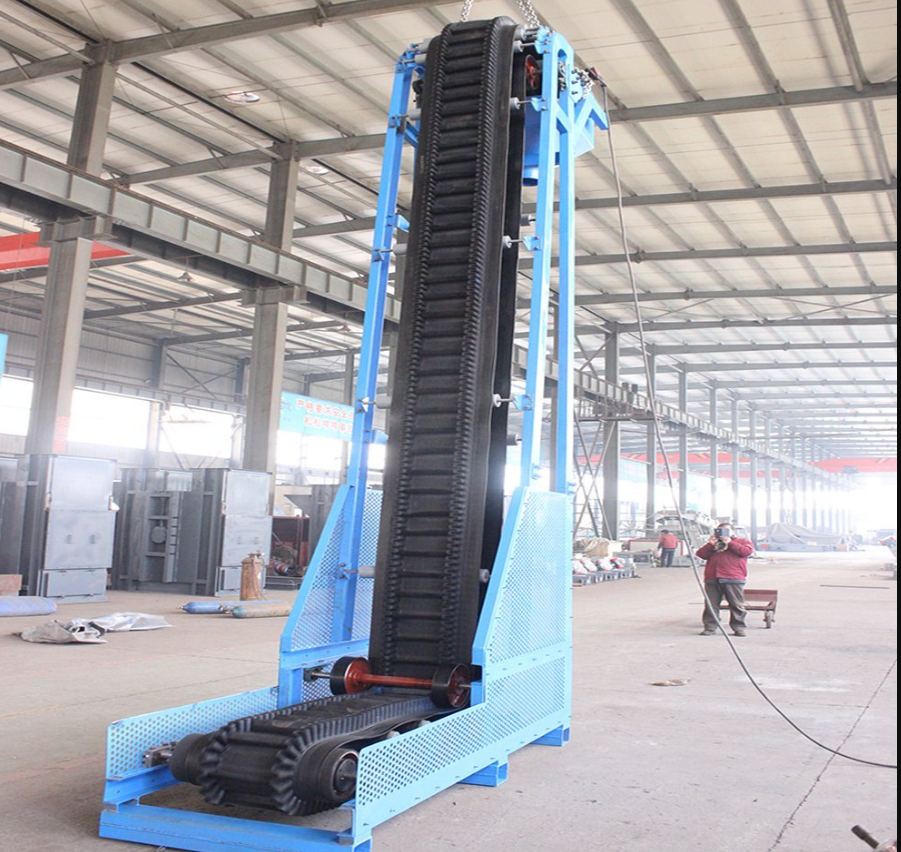

④90° inclined belt conveyor
Applicable materials: used for vertical transportation, suitable for occasions where materials need to be lifted significantly, such as silos, elevators, etc.
Features: The inclined adjustment range is usually 90°, suitable for granular and powdery materials
Applications: vertical lifting fields such as metallurgy, chemical industry, grain, feed, etc.
Video of adjustable inclined belt conveyor
Working principle of adjustable inclined belt conveyor
The motor transmits power to the transmission drum through the reducer, causing the transmission drum to rotate, and relies on the friction between the transmission drum and the conveyor belt to drive the conveyor belt to move, thereby realizing continuous transportation of materials on the conveyor belt. When the conveying angle needs to be adjusted, the inclined of the frame is changed through the corresponding adjustment device, and then the inclined angle of the conveyor belt is changed to meet different conveying needs.
What are the advantages of adjustable inclined belt conveyor?
Prevent materials from slipping and piling up: During material conveying, especially when the inclined changes, materials are prone to slipping or piling up. The anti-slip belt surface has a special texture or material that can increase the friction between the material and the belt and reduce the possibility of material slipping. The tensioning device of the adjustable inclined belt conveyor can ensure that the belt always maintains appropriate tension according to the operation of the belt and the weight of the material, and prevent material accumulation due to belt relaxation.
Solve the problem of material conveying angle limitation: The inclined of the adjustable inclined belt conveyor can be flexibly adjusted according to actual needs and can be changed between 0°-90°. In this way, the material can be conveyed to the designated position at a suitable angle according to the spatial layout and process flow of the workshop, meeting the feeding requirements of different mixing equipment, and improving the flexibility and adaptability of material conveying.

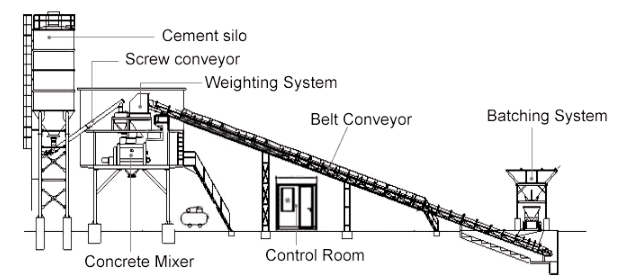

Ensure uniform material conveying: Material mixing requires uniform distribution of materials during conveying to ensure the mixing effect. The drive system can provide stable power output to ensure uniform belt running speed. The belt speed regulating device can adjust the feeding speed according to the characteristics of the material, so that the material can maintain a uniform flow and distribution during the conveying process, avoiding the material from being fast or slow or locally piled up.
Adapt to different material characteristics: Different materials have different physical properties, such as particle size, humidity, viscosity, etc. For materials with small particle size and easy to raise dust, you can choose a belt with good sealing performance, and take appropriate dust suppression measures during the conveying process; for materials with high humidity or strong viscosity, you can choose a belt material with a smooth surface and not easy to adhere to the material to prevent the material from adhering to the belt and affecting the conveying effect.
Application of adjustable inclined belt conveyor
The adjustable angle belt conveyor is a versatile material handling system that can efficiently transport goods at different inclined angles and is widely used in all walks of life.
Warehousing logistics: Moving goods between different floors or mezzanine areas: Adjustable inclined conveyors facilitate the vertical transportation of items, optimize space utilization and simplify the workflow of multi-storey warehouses. Belt conveyors can be adjusted to adapt to the height of the vehicle and are used to create inclined sorting lines to achieve effective separation of packages or products.

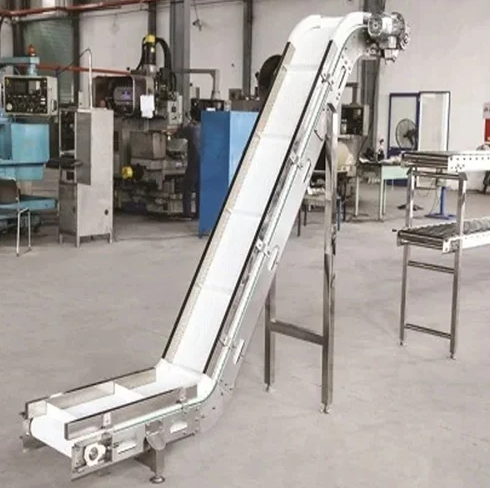

Manufacturing and processing: Belt conveyors can move components or finished products between different stages of the manufacturing process located on different floors, feeding machinery at different heights: ensuring a continuous and controlled supply of materials to processing equipment, and transporting by-products away from the production area. Handling raw materials, semi-finished products or packaged foods between different processing stages or on packaging lines.
Mining and construction: Conveying bulk materials such as coal, ore, sand and gravel, adjustable angle belt conveyors can transport materials from the mining point to the processing plant or loading area, often across large height differences. Removing excavated materials from construction sites: efficiently moving debris and soil.
In summary, adjustable inclined belt conveyors, with their flexible inclined angle adjustment capabilities, play an important role in situations where the conveying height needs to be changed or the space utilization needs to be optimized, improving the efficiency and convenience of material conveying. By dynamically adapting the conveying angle, the flexibility and efficiency of material handling are significantly improved, making it an ideal choice for solving complex conveying needs in modern industry.
