Carbon fiber vertical vibrating screen elevator
Wednesday July-02 2025 14:19:09
Carbon fiber vertical vibrating screen elevator is a device used for vertical conveying and synchronous screening of materials. The whole or part of the structure is made of carbon fiber material. Its core function is to enable continuous conveying, layered screening and other processing of materials in a vertical spiral path through a vibration drive device.
Due to the use of carbon fiber material, the equipment has the characteristics of light weight, high strength, corrosion resistance and good fatigue resistance. It is particularly suitable for industries with high requirements for equipment cleanliness, chemical resistance or structural rigidity, such as lithium battery powder, aviation composites, fine chemicals or electronic materials.
Working principle of carbon fiber vertical vibrating screen elevator
Vertical vibrating screen elevator usually uses the exciting force generated by two vibrating motors to make the entire lifting tower perform a composite spatial vibration of horizontal circular motion and vertical upward motion. Under the action of this composite vibration, the material performs a uniform circular throwing motion in the spiral groove and moves upward along the conveying groove, thereby realizing the vertical lifting of the material.
When the screening function is combined, the equipment will include a screen or a screen plate. Under the action of vibration, the material is effectively screened during the lifting process, and materials of different particle sizes are separated and conveyed to different outlets.
Difference between carbon fiber vertical vibrating screen elevator and bucket elevator
|
Project |
Project Carbon fiber vertical vibrating screen elevator |
Bucket elevator |
|

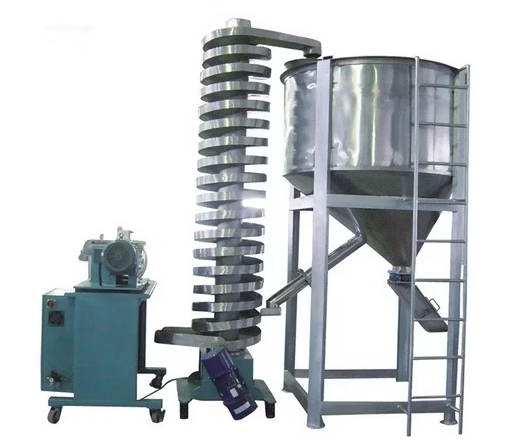

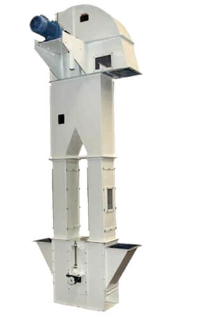

Picture |
|
|
|
Lifting method |
Use a vibrating motor to drive the material to move upward along a spiral path. |
The material is lifted by circulating through a hopper on a traction structure |
|
Structural form |
Vertical cylindrical structure with spiral guide rails or grooves inside |
Vertical or inclined arrangement, a series of hoppers are installed in a closed casing |
|
Applicable material particle size |
Applicable to fine powder, small particles, light or fragile materials |
Applicable to particles, powders, and particle mixtures, and block materials can also be applied |
|
Conveying height |
Generally suitable for medium and low height conveying (<5 meters) |
Applicable to higher conveying heights, commonly 5~30 meters |
|
Conveying capacity |
Moderate conveying volume, suitable for medium and low production applications |
Large conveying volume, suitable for continuous large-scale material lifting |
|
Typical application areas |
Lithium battery materials, carbon fiber powder, pharmaceutical powder, light food raw materials |
Conveying conventional granular materials such as cement, sand, fertilizer, and grain |

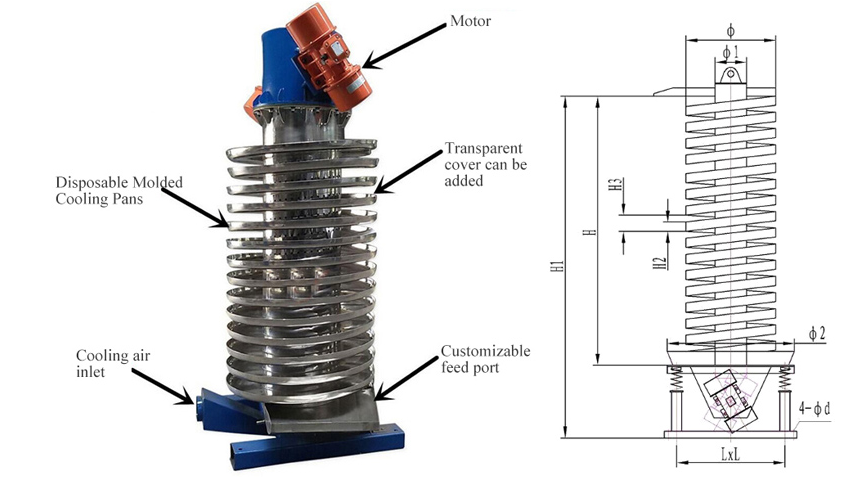

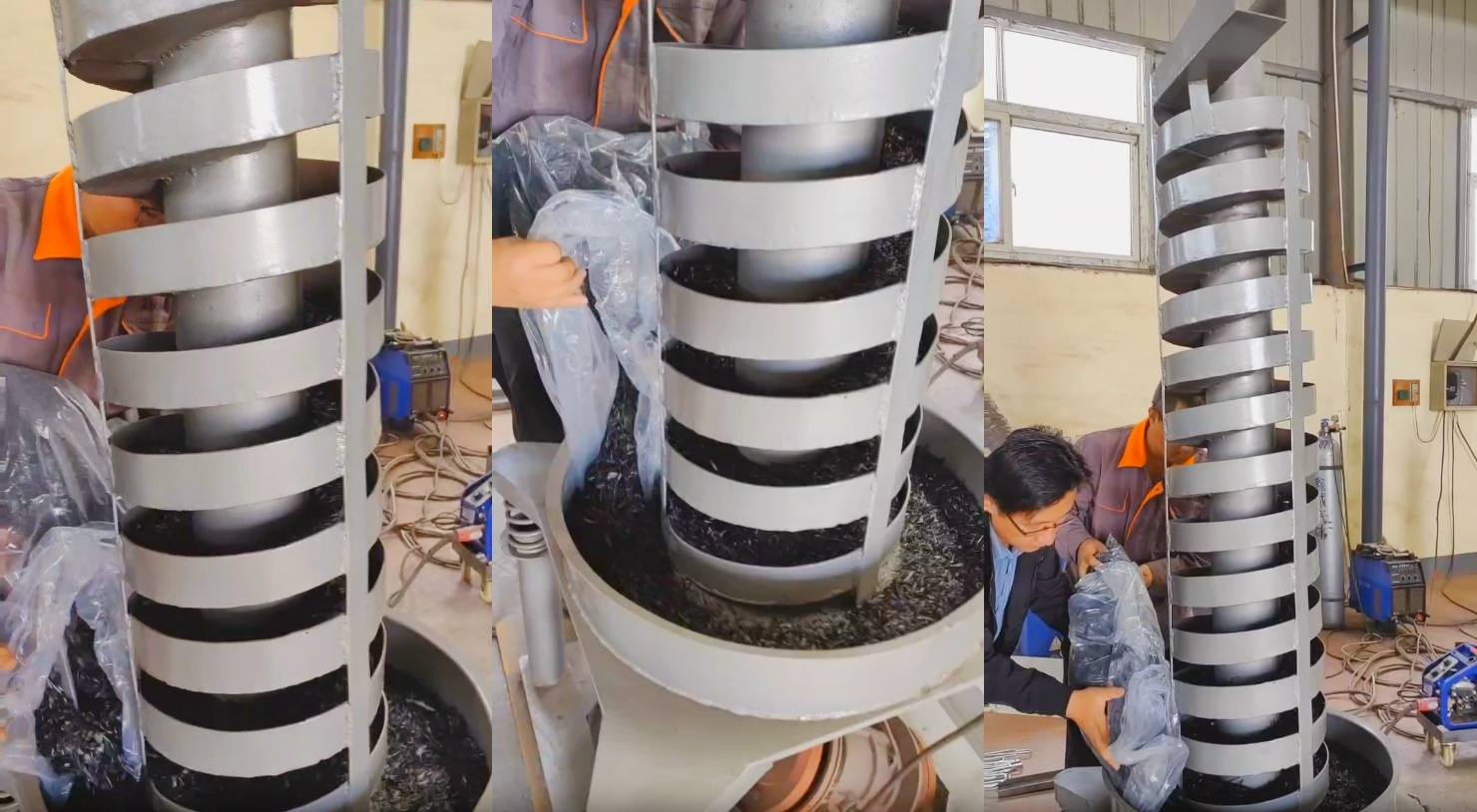

Structural composition
Lifting trough: used to carry and convey materials, usually with a spiral trough structure, which allows the material to move upward along the spiral path during the lifting process.
Vibration motor: as the power source of the elevator, it is fixed on the lifting trough. The center lines of two vibration motors of the same model are installed at a certain angle and rotate synchronously in opposite directions to generate exciting force.
Vibration reduction system: composed of a base and vibration isolation springs, etc., used to support the lifting trough and vibration motor, reduce the impact of vibration on the surrounding environment, and ensure the stable operation of the elevator.
Base: plays the role of supporting the entire elevator to ensure the stability of the equipment during operation.

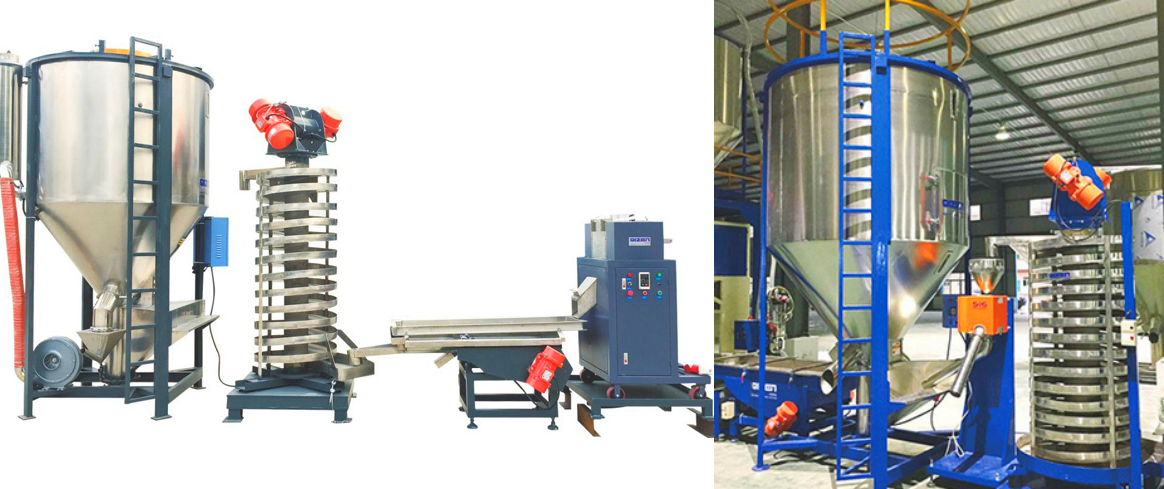

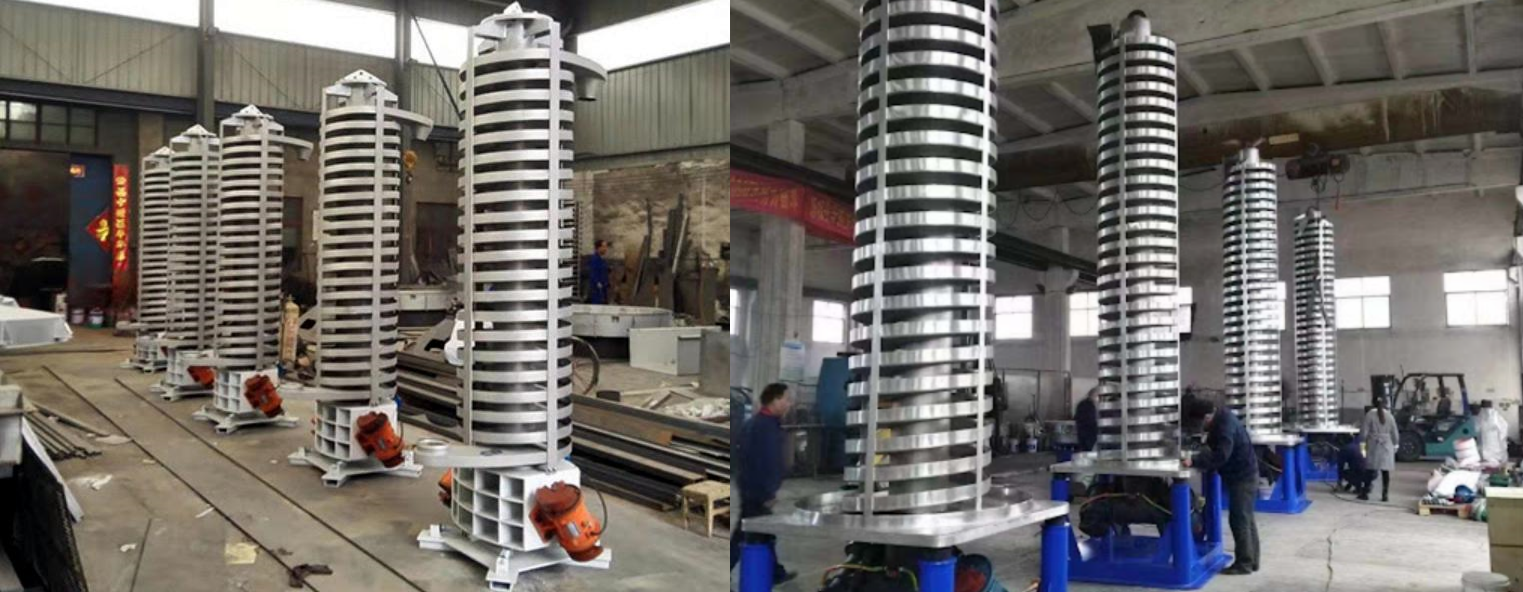

Typical application areas of carbon fiber vertical vibrating screen elevator
Positive and negative electrode materials of lithium battery (carbon powder, graphite, lithium iron phosphate)
Processing of carbon fiber chopped materials in aviation composite materials
Clean transportation of light and fragile materials in medicine and food
Low-pollution transportation of electronic powder and high-purity quartz sand
The carbon fiber vertical vibrating screen elevator is a device that combines vibration screening and vertical lifting functions. It is mainly used for screening, grading and conveying of powder and granular materials. It integrates vibration screening and vertical conveying functions, and can efficiently screen powder, granular or slurry materials with a screening accuracy of up to 20µm-63mm.
