Portable Grain Suction Mechanism

Saturday May-17 2025  16:59:40

The portable grain suction mechanism is a grain conveying equipment mainly used for short-distance, temporary or small-scale operations, and is used to handle grains (such as wheat, rice, corn, etc.) in agricultural or industrial scenes. Its core function is to suck bulk grains from the ground or containers through negative pressure suction, and then transport them to designated locations such as grain storage bins, carriages, packaging mechanisms, etc. through conveying pipes.

What is the purpose of a portable grain suction mechanism?

Suction grain from the ground, truck or stack into a storage bin or processing equipment.

Reduce manual handling and improve loading and unloading efficiency.

Applicable to a variety of grains, such as wheat, rice, corn, soybeans, etc., and can also be used for other granular materials (such as plastic granules, feed, etc.).

Commonly used in agriculture, grain processing, feed production and other industries.

The difference between a portable grain suction mechanism and an ordinary grain suction mechanism

Project	Portable grain suction mechanism	Ordinary grain suction mechanism
Structural volume	Small volume, easy to carry and move	Generally large volume, occupying more space, some are fixed or semi-mobile
Mobility	With wheels or handles, can be pushed by one person, suitable for frequent transfer operations	Mostly fixed or semi-fixed, requiring vehicles or multiple people to move in collaboration
Power configuration	Mostly small power motors or diesel engines, 2.2~7.5kW	High power, often above 7.5kW, suitable for high-intensity continuous operations
Applicable places	Agricultural Households, grain collection points, small grain depots and other places, suitable for temporary operations	Processing plants, grain stations, storage centers, suitable for fixed operation points
Transport capacity	3~10 tons/hour, moderate	10~30 tons/hour, strong transport capacity
Transport distance (reference value)	Horizontal 5~15 meters, vertical 3~6 meters	Horizontal up to 20 meters, vertical up to 8 meters
Applicable material types	Mainly common grain particles such as corn, wheat, soybeans, rice, etc.	Can adapt to a variety of materials, including grain, feed, granular by-products, etc.

What are the advantages of portable grain suction mechanisms?

Significantly improve operating efficiency: Compared with traditional manual handling methods, portable grain suction mechanisms can achieve fast and continuous grain transportation. A single person can efficiently complete loading and unloading operations that previously required multi-person collaboration, and the theoretical conveying efficiency can reach several tons to tens of tons per hour, depending on the model of the equipment and the density of the grain.

Material transfer flexibility: The portable design can easily cope with various complex terrains, such as fields, uneven storage areas, etc. Its flexible suction port and discharge pipe design enable it to absorb grain from a variety of containers and transport grain to different target locations, achieving "point-to-point" precise transportation.

Effectively reduce grain loss: Traditional handling methods, especially in the loading and unloading of bulk grains, will inevitably cause spillage and scattering. Portable grain suction mechanisms can significantly reduce the physical loss of grain during transportation. Its suction function can also effectively collect grain scattered on the ground, with a theoretical recovery rate of more than 95%.

Wide compatibility, suitable for a variety of granular materials: By adjusting the fan power and the suction diameter (common pipe diameters are Φ75mm, Φ100mm, Φ125mm), it can be widely used to absorb various types of granular agricultural products, suitable for non-damaged transportation of a variety of materials, ensuring material integrity, and especially suitable for transportation needs in grain storage, processing, sales and other links.

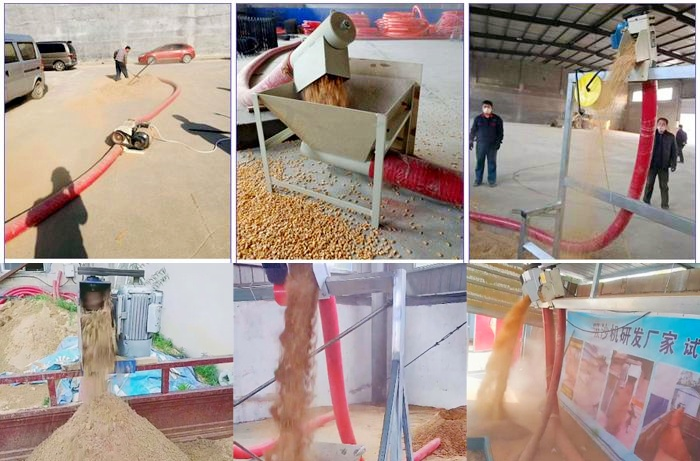

Application of portable grain suction mechanism

Portable grain suction mechanism is widely used in agriculture, grain storage, transportation, processing and other fields due to its compact structure, easy mobility and simple operation. It is especially suitable for temporary operations in small-scale or scattered sites.

① Agricultural production and household grain storage

Dried corn, wheat, soybeans, etc. are sucked from the ground or sacks into grain storage bins or grain storage bins, replacing traditional manual handling, which is more efficient and less labor-intensive. During the long-term storage of grain, it is necessary to ventilate the warehouse or change the storage position. The portable grain suction mechanism can quickly suck grain from one bin to another.

② Grain procurement and transfer links

Quick grain unloading at the procurement point: At rural grain procurement points or cooperatives, it can be used to quickly suck grain from the bucket of agricultural vehicles and send it to the grain storage bin, saving loading and unloading time.

Temporary bagging operation: With simple packaging equipment, the sucked grain can be directly dropped into the woven bag, which is suitable for places without automated packaging conditions.

Loading operation: Grain in the warehouse or on the ground can be sucked and transported to the truck cargo compartment for grain transfer operations.

③ Grain processing and feed industry

In small rice milling, flour milling, and feed processing units, bulk raw materials are sucked into the feeding port and connected to the feeding system. In the absence of fixed conveyors in some links, portable grain suction mechanisms can temporarily transport materials from one device to another.

④ Storage and logistics sites

In areas that are difficult to handle manually, such as warehouse bottom cleaning and corner residual grain cleaning, suction mechanisms can be used to achieve dead-angle cleaning. When the warehouse needs to transfer part of the grain to other warehouses or locations, the suction mechanism can be used as a handling intermediary tool.

Depending on your specific needs (for example, conveying volume, conveying distance, grain type, etc.), you can choose portable grain suction mechanism of different models and specifications. Dahan mechanismry Manufacturer provides various types of grain conveying equipment, and you can choose the most suitable solution for you based on our product information. If you can provide more specific usage scenarios or needs, I can try to provide more targeted information.
