Sanitary Food Grade Screw Conveyor
Sanitary food grade screw conveyors are designed for contamination-free bulk powder conveying in food processing lines, ideal for dairy, bakery and pet food materials with CIP cleanable sanitary construction.
Material: SS304 / SS316L (Polished Ra ＜ 0.8 μm)
Capacity: 0.5 – 15 m³/h
Pipe Diameter: 100 – 273 mm
Conveying Distance: 1 – 12+ m (Horizontal/Inclined/Vertical)
Motor Power: 0.75 – 4.0 kW (Explosion-proof / Washable Grade Optional)
In automated food manufacturing lines, raw ingredient contamination and labor-intensive material handling present ongoing production bottlenecks. A Sanitary Food Grade Screw Conveyor addresses these vulnerabilities by operating as an enclosed, contamination-free conduit for bulk powders and granules across processing stages. Constructed entirely from certified SS304 or SS316L stainless steel, these systems isolate volatile ingredients from environmental factors while achieving throughput capacities from 0.5 m³/h to 15 m³/h. Engineered to accommodate varied factory layouts, they facilitate horizontal transfers or vertical elevations spanning distances from 1 meter to over 12 meters, reliably dosing mixers, blenders, and packaging funnels.
Standard material handling equipment frequently risks product degradation through dead zones, shaft seal leakage, and difficult clean-up protocols. A contrast in mechanical engineering reveals how specialized sanitary equipment resolves these issues:
| Design Element | Standard Industrial Screws | Sanitary Screw Engineering |
| Internal Surface Finish | Rough welds; Ra > 3.2 μm surfaces allowing bacterial colonization. | Continuous, pit-free welds polished to Ra < 0.8 μm, eliminating micro-crevices. |
| Housing Design | Sealed bolt-on covers requiring heavy tools to open for inspection. | Quick-release clamp mechanisms allowing operators to remove covers without tools. |
| Drive Shaft Sealing | Standard packing glands that leak powder and trap bacteria over time. | Air-purged mechanical seals that isolate bearings from the food product chamber. |
By eliminating mechanical crevices, this sanitary design prevents organic accumulation, reducing maintenance downtime during batch switchovers.
Sanitary Food Grade Screw Conveyor Video Showcase
Material Handling Application Scenarios
Material characteristics dictate the precise configuration of the conveying flighting and drive assemblies across distinct factory environments.
Dairy Processing (Milk Powder)

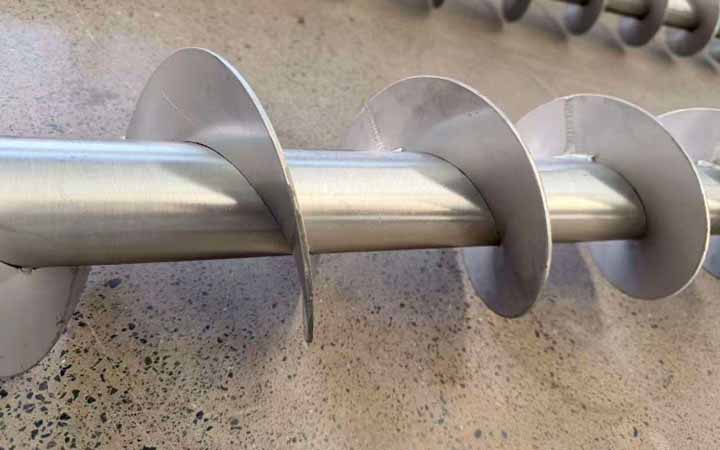

Infant formulas and dairy derivatives absorb moisture rapidly, creating sticky deposits where dangerous pathogens multiply. To counter this bio-hazard risk, the screw flights undergo seamless robotic welding followed by precise mechanical polishing to mirror finishes. This smooth surface prevents fatty milk proteins from adhering, allowing Clean-In-Place (CIP) spray balls to wash away residues without leaving moisture traps.
Bakery Ingredients (Flour and Starch)
Modern bakeries transfer fine combustible powders that prone to dusting and friction-induced clumping. The enclosed tubular housing contains airborne dust particles, mitigating explosion hazards, while customized variable pitch screws prevent compression-induced heat, keeping heat-sensitive starches stable during high-volume transfers to industrial mixers.
Pet Food Manufacturing (Kibble and Pellets)
Extruded pet treats require gentle handling to minimize breakage and structural degradation before packaging. Utilizing loose-tolerance ribbon flights operating at reduced rotational speeds (< 60 rpm), the system moves fragile kibble without generating shear forces, minimizing product waste.

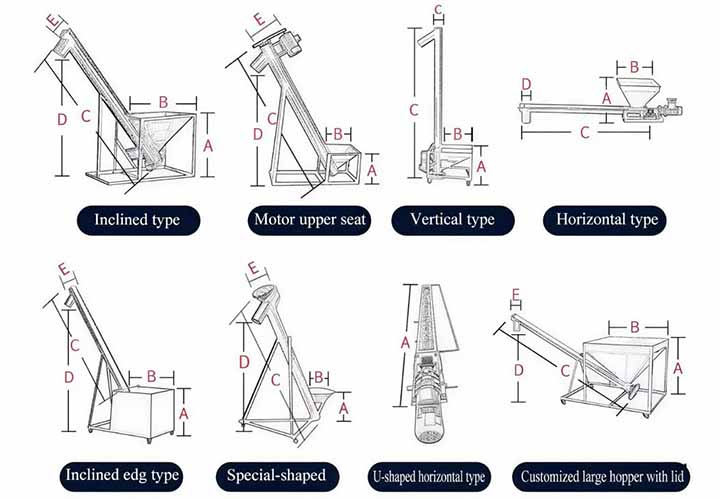

Types of Hygienic Food-Grade Screw Conveyors
Hygienic food-grade screw conveyors are available in various types, including horizontal, inclined, and vertical, and can be customized with different pipe diameters, lengths, inlet and outlet designs according to the characteristics of the food.
Technical Specifications
For engineering evaluation and structural integration planning, the standard mechanical configurations are outlined below:
| Model Indicator | Screw Outer Diameter (mm) | Maximum Throughput (m³/h) | Standard Motor Power (kW) | Available Incline Angles |
| AUG-100S | 100 | 1.5 | 0.75 | 0° - 45° |
| AUG-159S | 159 | 4.0 | 1.50 | 0° - 45° |
| AUG-219S | 219 | 8.5 | 2.20 | 0° - 30° |
| AUG-273S | 273 | 15.0 | 4.00 | 0° - 30° |
Technical Service & Engineering Support
Technical support begins during the initial quoting phase, where application engineers generate custom 3D CAD layouts matching individual factory ceiling heights and input-to-discharge distances. Every machine ships alongside comprehensive material test reports (MTRs) verifying stainless steel heat numbers, welding certifications, and polymer compliance documentation required by international food regulatory inspectors. Field technicians provide remote installation supervision and supply preventative maintenance checklists to keep facility staff trained on proper seal replacements and CIP procedures.
We manufacture these conveyors in compliance with FDA food contact standards and 3-A sanitary criteria. To date, we have delivered over 200 hygienic conveying systems for dairy, bakery and pet food production lines across more than 30 countries. All welds are inspected and documented before shipment.
Frequently Asked Questions
Q: How do facility operators clean the internal components between production batches?
A: The top housing features quick-release toggle clamps, allowing operators to lift the covers away manually. Optional drop-bottom troughs permit complete water washdowns, directing effluent toward facility floor drains.
Q: What variables dictate the final purchase price of a sanitary screw conveyor?
A: System pricing correlates directly with customized engineering specifications. Incorporating SS316L stainless steel instead of SS304 increases raw material costs by roughly 30%. Furthermore, adding pneumatic slide gates, specialized explosion-proof drive motors, or elongated vertical spans increases machining labor and component expenses. Custom quotes are calculated following review of specific material density data and dimensional requirements.
Q: Can this equipment replace existing industry-standard flexible screw systems?
A: Yes. These rigid screw systems serve as solid mechanical alternatives to flexible augers or pneumatic venturi lines, offering simpler cleaning pathways and eliminating internal flexible cables that can snap under heavy loads.
Q: What is the typical lead time for a custom sanitary food grade screw conveyor?
A: Standard configurations ship in 7–15 working days; custom sanitary modifications take 20–30 working days.
Q: Is this sanitary screw conveyor compatible with plant CIP cleaning systems?
A: Yes. Wetted surfaces are polished to Ra ≤0.8 μm, and quick-clamp connections support CIP integration without full disassembly.

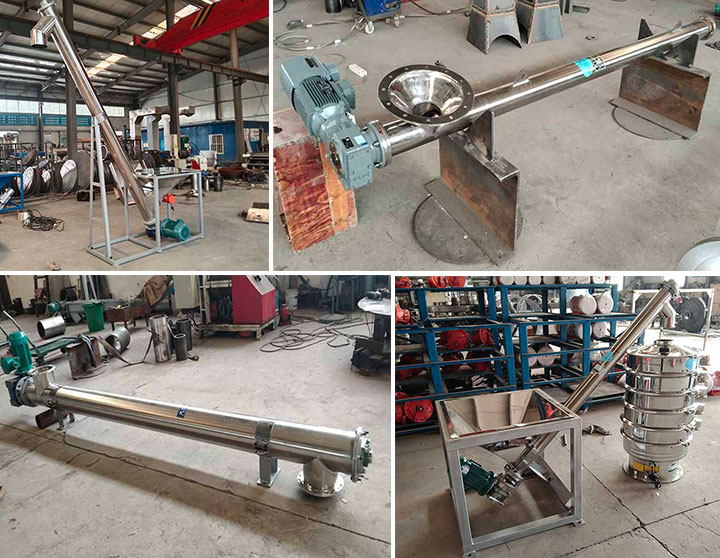

Real photos of a food-grade screw conveyor at the factory
Integrating a custom-engineered sanitary food grade screw auger conveyor modernizes material handling infrastructure by addressing cross-contamination risks and batch changeover delays. Through smooth internal surfaces, accessible hardware, and application-specific parameters, these systems protect raw ingredient purity while optimizing automated processing line continuity.
