Working principle and application of warehouse wall vibrator

Thursday February-09 2023  13:58:51

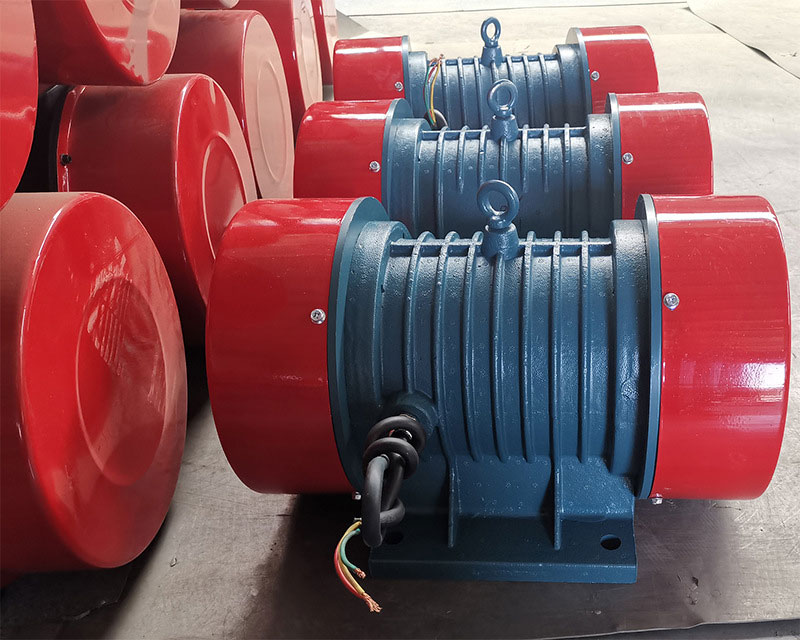

The working principle of the warehouse wall vibrator:

The silo wall vibrator is a silo anti-blocking device, which is usually installed on the silo wall of the machine. When the silo wall vibrator is working, the regular high-frequency vibration generated by the vibrating motor can make the The material is separated, avoiding material accumulation and blockage caused by various reasons, and reducing the possibility that the machine will stop working due to blockage and affect production.

The use of warehouse wall vibrator:

The bin wall vibrator is mostly installed on the side wall or pipeline of the feeding equipment, as well as the surface of various feeding pipeline chutes, used to remove adhered materials, such as vibrating feeders, vibrating funnels, vibrating conveyors, etc. No special application industry restrictions.

Select the power of the silo wall vibrator according to the wall thickness of the silo

For silos with a wall thickness of 3.2-4.5mm, the recommended power is 0.12kw;

For silos with a wall thickness of 4.5-6mm, the recommended power is 0.22kw;

For silos with a wall thickness of 6-8mm, the recommended power is 0.37kw;

For silos with a wall thickness of 8-10mm, the recommended power is 0.75kw;

For silos with a wall thickness of 10-13mm, the recommended power is 1.1kw.
