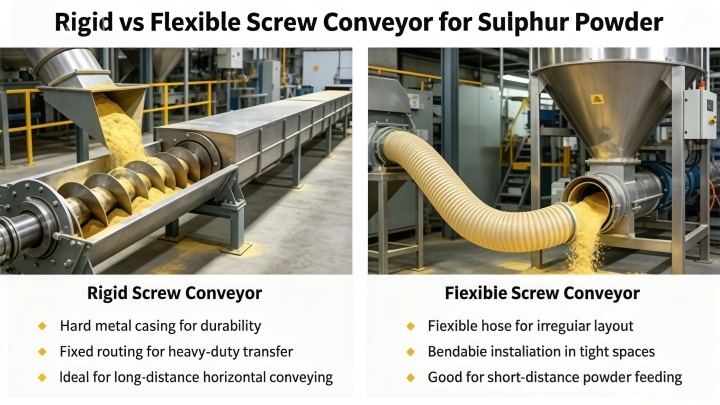

Rigid vs Flexible Screw Conveyor for Sulphur Powder

Wednesday September-16 2026  14:37:35

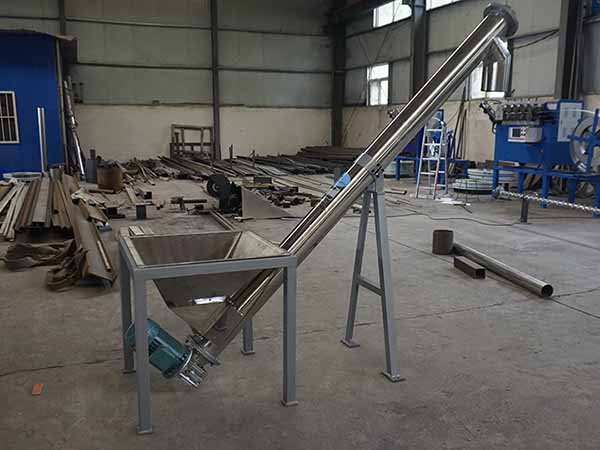

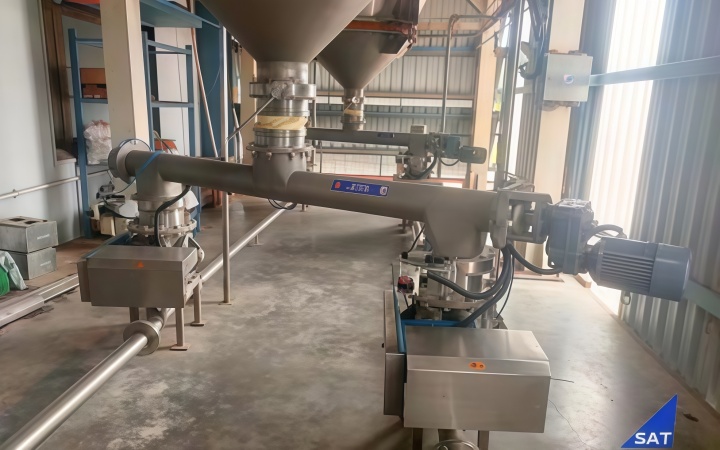

In sulphur powder handling, Sulphur Powder Screw Conveyor – Explosion-Proof, 304/316L is a common equipment type, and the selection between Rigid vs Flexible Screw Conveyor for Sulphur Powder affects safety and efficiency. Sulphur powder has low ignition energy, low melting point, easy static accumulation, and moisture absorption, making conveying a higher-risk stage. The structural differences between the two equipment types influence friction heat, sealing performance, and blockage risk, which are exactly where sulphur powder conveying tends to fail.

Under Low Ignition Energy of Sulphur Powder, Where Does Rigid vs Flexible Screw Conveyor for Sulphur Powder Differ in Material Adaptability

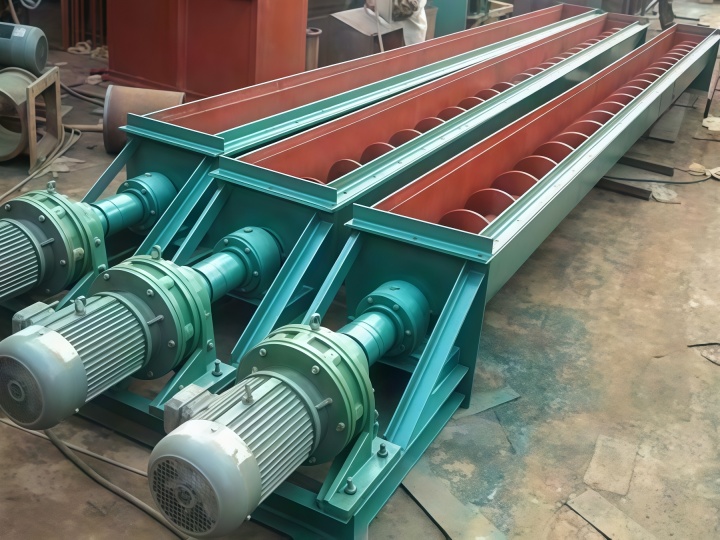

A 2025 Powder & Bulk Solids article notes that when sulphur dust particles below 75mm are reduced to micron levels, ignition energy can be as low as 0.38mJ. Sulphur melts at 115°C, and local overheating leads to adhesion and hardening. Rigid screw relies on a central shaft supporting flights, pushing material axially in a sealed housing with a predictable path. Flexible screw uses a shaftless spring rotating at high speed, pushing material along a curved pipe by centrifugal force, with continuous friction between spring and pipe wall as an inherent feature.

Safety, Sealing, Lifespan: How to Weigh Rigid vs Flexible Screw Conveyor for Sulphur Powder

Safety, sealing against blockage, and maintenance interval are core weighing dimensions. Rigid screw has advantages in low-speed friction heat control and main body durability. Flexible screw is convenient for cleaning but has a smaller safety margin. Sealing against blockage depends on moisture content and conveying distance.

For safety, rigid screw runs at 40 to 70rpm, friction heat is controllable, and explosion-proof motor with static-dissipating copper strip forms a safety chain. Flexible screw spring rotates at high speed, heat accumulation is concentrated, deflection is hard to eliminate, and safety margin is smaller for low ignition energy material. The 2008 Kunming sulphur dust explosion caused 7 deaths and 32 injuries, due to dust in the belt pit reaching the explosion limit.

For sealing and blockage prevention, when flexible screw conveys moisture-absorbing sulphur powder, the gap between spring and pipe wall easily accumulates material and forms progressive blockage. Horizontal distance is usually 5 to 20 meters. Rigid screw blockage points are mainly at inlet and hanger bearings, and can be prevented with anti-blocking baffle or reverse-flight end section.

For maintenance and durability, flexible spring is a wear part and fatigues under abrasive conditions. Rigid hanger bearings and shaft seals need reliable lubrication, with slightly higher maintenance frequency, but main structure durability is better.

Path, Capacity, Incline: Quantitative Selection Logic for Rigid vs Flexible Screw Conveyor for Sulphur Powder

Path layout, peak conveying volume, and incline are three key quantitative selection variables. Flexible screw suits complex turns but horizontal distance is limited. Rigid screw suits long straight distance. Conveying volume needs safety margin based on peak demand. Larger incline causes more obvious volume drop.

First, if path needs to bypass obstacles or make multi-directional turns, flexible screw can bend but horizontal distance should not exceed 20 meters. Rigid screw suits horizontal or fixed-angle long distance. Second, conveying volume should reserve 20 to 30 percent safety margin based on peak demand. Third, CEMA Standard No. 350 shows a 15-degree incline correction factor of about 0.7, meaning volume drops to 70 percent of horizontal conveying. When selecting, calculating path, peak volume, and incline together is more reliable.

Data Sources and Verification for Rigid vs Flexible Screw Conveyor for Sulphur Powder

Key data are traceable. The 0.38mJ figure references the 2025 Powder & Bulk Solids article. Incline correction references CEMA Standard No. 350. Global case references the Siwertell ST 790-D screw unloader at IFFCO in Paradeep, India, with sulphur handling capacity of 1,800 tons per hour, equipped with the 4S safety system. Readers can check CEMA standards or request same-condition data from suppliers for verification.

Typical Working Condition Quick Reference for Rigid vs Flexible Screw Conveyor for Sulphur Powder

Multi-floor pesticide compounding workshop with limited space, flexible screw is preferred, but horizontal section should not exceed 20 meters and moisture content should be below 0.5 percent. Rubber vulcanization line running continuously for long periods, rigid screw with low-speed stable pushing is more suitable. Intermittent small-batch feeding needs quick cleaning, flexible screw spring can be withdrawn, but check wear every shift. High humidity or undried sulphur powder, rigid screw is more resistant to adhesion, flexible screw needs more frequent material accumulation checks.

Pre-Purchase Checklist: Safety Configuration for Rigid vs Flexible Screw Conveyor for Sulphur Powder

Safety configuration check should cover explosion-proof drive, static dissipation, bearing sealing, pressure relief, material compatibility, and inlet details.

For explosion-proof motor and reducer, confirm equipment complies with ATEX or IECEx standards, and junction box rating matches hazardous area classification.

For static dissipation, check copper strip bridging between flanges, grounding carbon brush on rotating shaft, and grounding resistance records.

For sealing and bearing protection, external bearings should have air purge seals or packing seals to prevent dust from entering and generating friction heat.

For pressure relief, directional pressure relief valve or burst disc on top of housing allows controlled release of abnormal pressure.

For material compatibility, material contact surfaces use 304 or 316L stainless steel with mirror polishing to reduce adhesion.

For inlet details, install anti-static flexible connection, and pressure relief valve discharge direction avoids operator area.

FAQ: Common Questions on Rigid vs Flexible Screw Conveyor for Sulphur Powder

Can screw conveyors still be used when sulphur powder moisture content is high?

When moisture is above 0.5 percent, drying beforehand is suggested. If conveying is necessary, rigid screw is more tolerant, flexible screw needs material accumulation checks every shift.

Is nitrogen protection needed during conveying?

When particle size is very fine and close to explosion limit, external nitrogen system with oxygen content monitoring is needed, keeping oxygen below 8 percent.

Can screw conveyors be made mobile?

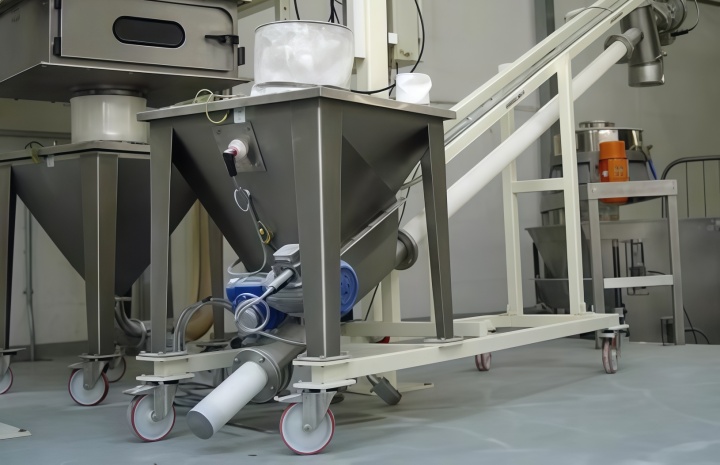

Flexible screw is often made mobile, needs anti-static grounding wheels. Rigid screw mobile design is less common and has higher center of gravity.

How much material remains on pipe walls after sulphur powder conveying?

Residue depends on moisture and pipe wall finish. Flexible screw cleans more thoroughly after spring withdrawal, rigid screw tends to have dead corners near hanger bearings.

Conclusion

The core conflict in sulphur powder conveying is the balance between safety and efficiency. Rigid vs Flexible Screw Conveyor for Sulphur Powder has no fixed superiority. The key is whether material characteristics, process layout, and operation rhythm match the equipment structural logic. Organizing particle size, moisture content, and space conditions clearly, then checking against the safety list item by item, helps find the right answer more than simply comparing parameters. Further verification can reference CEMA Standard No. 350 or ATEX Directive 2014/34/EU.
